1.  Product description

  300V IP67 19*26AWG DB26 signal industrial wiring harness using 5 core 22AWG oxygen free copper conductor, the inner layer of the wire is threaded through the tin-plated copper braided net, the shielding rate is 80%, and the tin-plated copper braided net is threaded through the blue nylon braided net, which can effectively improve the wear resistance and is suitable for wiring in small space. The industrial harness operates in a temperature range of -40°C to +105°C with IP67 protection rating, suitable for most equipment; With a rated voltage of 300V, it can withstand high voltage loads and provide energy supply for the equipment.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Industrial automation equipment: In factory automation, CNC machine tools, robots and other equipment, the industrial wiring harness reliably and stably transmits signals between various sensors, controllers, and actuators. Its excellent protection performance and mechanical properties, can operate in harsh industrial environment for a long time, to ensure the normal work of the whole automation system.


II: Industrial control system: in PLC, industrial computer, frequency converter and other industrial control equipment, the industrial wiring harness is widely used to connect various input and output modules, communication interfaces, etc. Its protection grade up to IP67 reliably blocks dust and moisture, ensures stable operation of the control system, and reduces the failure rate.

III: Energy equipment: This industrial harness is used to connect monitoring equipment, frequency converters, protective devices, etc., in energy systems such as wind farms, photovoltaic power stations, and power plants. Its excellent temperature resistance and anti-electromagnetic interference ability ensure reliable communication between key components of energy equipment and improve the stability of system operation.

1.2 Feature

I: Excellent protection performance: The industrial harness adopts IP67 protection grade design, which can effectively protect against dust and water intrusion, even in the immersion of 1 meter water depth environment, can also maintain normal operation. This protective performance ensures the reliable operation of the industrial harness, even in the harsh industrial environment will not be contaminated and damaged.

II: High mechanical strength: The outer layer of this industrial harness is reinforced with nylon braised mesh, which greatly improves the tensile strength, tear resistance and impact resistance of the harness. In the mechanical vibration, extrusion, drag and other harsh conditions, the industrial harness can still maintain integrity, extend the service life.

III: Excellent temperature resistance: the PVC insulation material used in the industrial wiring harness can work stably in a wide temperature range of -40°C to +105°C, even in extreme temperature environment will not appear aging, hardening and other problems, to ensure long-term reliable operation of the equipment.

IV: Anti-electromagnetic interference: The internal 19-core 26AWG oxygen free copper conductor of the industrial wiring harness adopts integral shielding design, which effectively blocks external electromagnetic interference, ensures the safety and reliability of signal transmission, and avoids interfering with the normal work of the equipment.

2. Product information

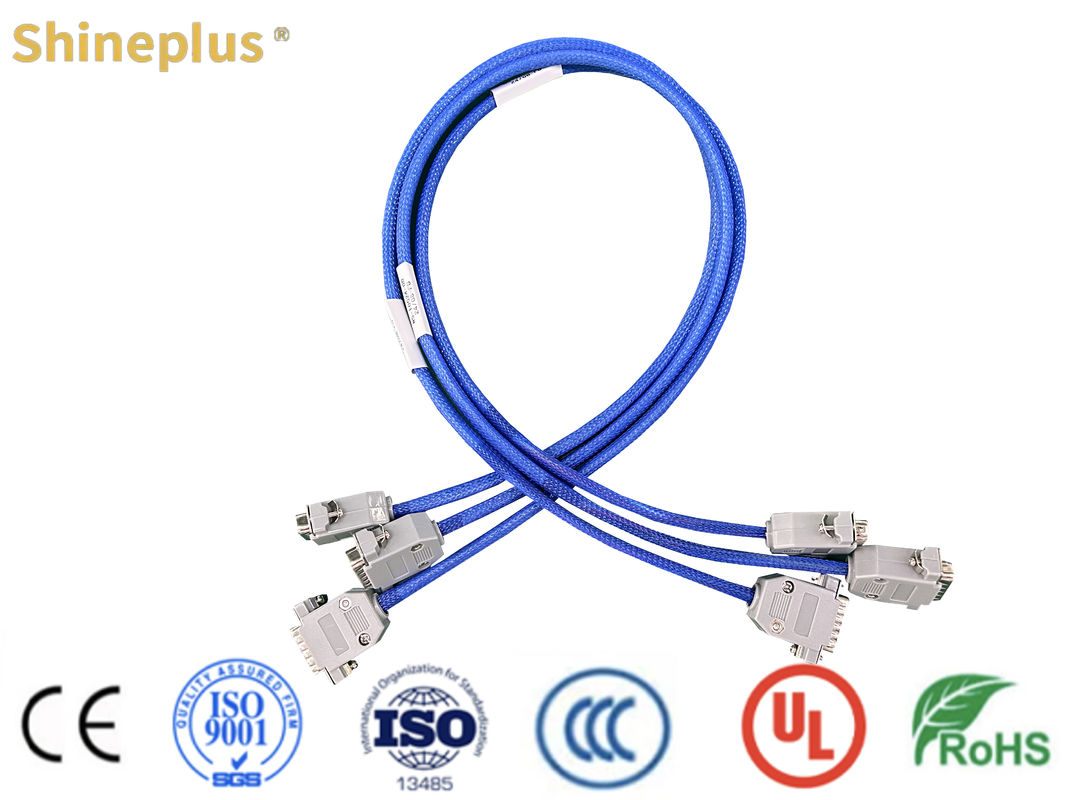

2.1 Picture of real products
