UL20276 36C X 26AWG Industrial Wire Harness 1000M Strap Shield DB44 Industrial Cable

UL20276 36C*26AWG color core pair strap shield DB44 black 1000M industrial wire harness

Application Area:

I. Automation Machinery: The spring industrial wiring harness is well-suited for automation machinery, including robotic systems and automated production lines. It serves as a reliable solution for power transmission, signal transmission, and control systems. The harness ensures stable electrical connections and dependable signal transmission even in high-speed and complex operating environments

1.  Product description

  UL20276 36C*26AWG color core pair strap shield DB44 black 1000M industrial wire harness it consists of 36 colored core wires, each of which uses 26AWG (American wire gauge) wire size. This specification is suitable for medium current transmission and provides a sufficient number of wires to meet a variety of connection requirements. The core wires in the industrial harness are arranged in a twisted pair structure, which is conducive to reducing electromagnetic interference and crosstalk. One end of the industrial harness is equipped with a DB44 connector, a connector commonly used in industrial equipment and communication equipment. The DB44 connector provides solid connection performance and high reliability, making it easy to connect to other devices.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Automation equipment: The industrial wiring harness can be used in a variety of automation equipment, such as industrial robots, automatic assembly lines, automated production equipment, etc. The harness can provide stable signal transmission and support data communication and control between sensors, actuators and controllers.

II: Instrumentation: For industrial instrumentation, test equipment, and measurement systems, this industrial harness can be used to connect components such as sensors, probes, displays, and more. The wiring harness can ensure accurate signal transmission and data acquisition, and ensure the reliability and accuracy of the instrumentation system.

III: Robotics: In the field of robotics, this industrial harness can be used for internal connections of parts such as robot arms, joints, and end effectors. The industrial wiring harness is capable of withstands mechanical motion and vibration and provides reliable power and signal transmission to meet the requirements of robotic motion control and sensing systems.

1.2 Feature

I: Multi-core wire design: The industrial wiring harness consists of 36 colored core wires, providing multiple signal transmission channels. This makes the harness suitable for multiple connection requirements and can transmit multiple signals or data simultaneously.

II: Twisted-pair structure: The core wires in the industrial harness adopt twisted-pair structure, that is, two or more core wires are twisted together in a specific way. The twisted pair structure helps to reduce electromagnetic interference and crosstalk, and improve the stability and anti-interference ability of the signal.

III: Shielding design: The industrial wiring harness has a metal shielding structure, which is used to suppress the influence of external electromagnetic interference on signal transmission. Effectively protect the signal inside the harness from the influence of external interference.

2. Product information

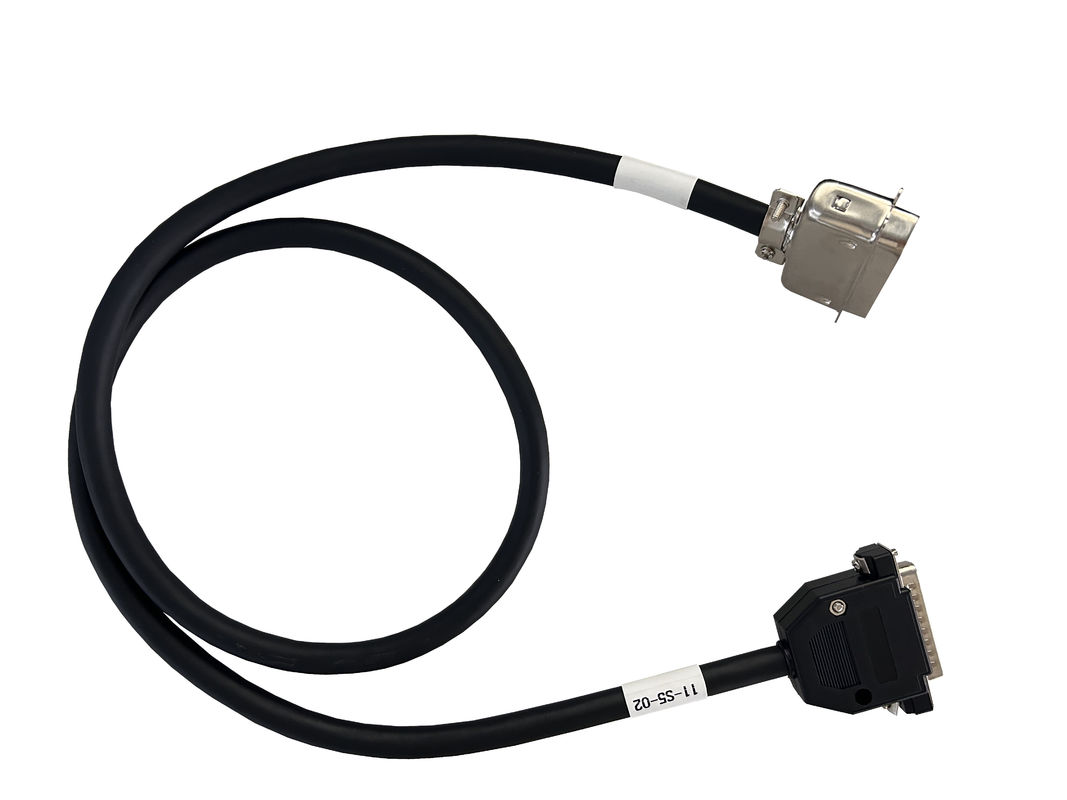

2.1 Picture of real products
