12PIN 14PIN Industrial Wire Harness Straight Plug Welded Sheath Plug 500V UL2464

14PIN straight plug, 12PIN welded straight cable sheath plug 500V UL2464 PVC power tool industrial wiring harness

Aerospace: The spring industrial wiring harness finds applications in aerospace equipment such as aircraft, satellites, and navigation systems. With its ability to withstand extreme environmental conditions like high and low temperatures, high humidity, and vibrations, the harness ensures reliable power and signal transmission, critical for the smooth operation of aerospace systems.

1.  Product description

  14PIN straight plug, 12PIN welded straight cable sheath plug 500V UL2464 PVC power tool industrial wiring harness made of insulating materials, it can withstand harsh industrial environment conditions. UL2464 PVC cable has good electrical insulation properties and durability, which can effectively protect the wire from physical damage. Both the 14PIN straight plug and the 12PIN welded straight cable sheath plug have multiple pins for the transmission of power, signals, and control lines. The number and arrangement of these pins can be customized according to specific application requirements. This industrial harness is equipped with a PVC cable sheath that provides additional protection against physical damage, chemical corrosion, and electromagnetic interference to the wires.

  14PIN straight plug, 12PIN welded straight cable sheath plug and 500V UL2464 PVC power tool industrial harness are widely used in power tools, industrial equipment, automation systems and other fields. They are critical components that connect power, signal, and control lines, ensuring proper operation of the equipment.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Power tools: These connectors and industrial wiring harnesses are commonly used in various power tools such as electric drills, hammers, electric saws, and electric shears. The harness provides the connection of power transmission, signal transmission and control lines to ensure the normal operation of power tools.

II: Industrial equipment: 14PIN straight plug, 12PIN welded straight cable sheath plug and 500V UL2464 PVC power tool industrial wiring harness is also widely used in other industrial equipment, such as mechanical equipment, automation systems, production lines and factory equipment, etc. The industrial harness can be used for power supply, data transmission, signal control, and instrument connection.

III: Automotive industry: 14PIN straight plug, 12PIN welded straight cable sheath plug and 500V UL2464 PVC power tool industry wiring harnesses are also widely used in the automotive industry. These industrial wiring harnesses are used in automotive electrical systems, sensor connections, control units, and in-vehicle electronics, among others.

1.2 Feature

I: High voltage tolerance: These connectors and industrial harnesses are designed for use in high voltage environments with high voltage tolerance with currents up to 500V. This makes this industrial harness suitable for applications requiring high voltage transmission, capable of transmitting power and signals stably.

II: Chemical resistance: UL2464 PVC cable sheath has excellent chemical resistance to common industrial chemicals and solvents. This allows industrial wiring harnesses to maintain stability and reliability in environments where they come into contact with chemicals.

III: Waterproof performance: The power tool industrial harness is equipped with waterproof design, waterproof rating IP67, able to work in wet or wet environment. This makes the industrial harness suitable for outdoor and harsh industrial environments and resistant to moisture and water intrusion.

2. Product information

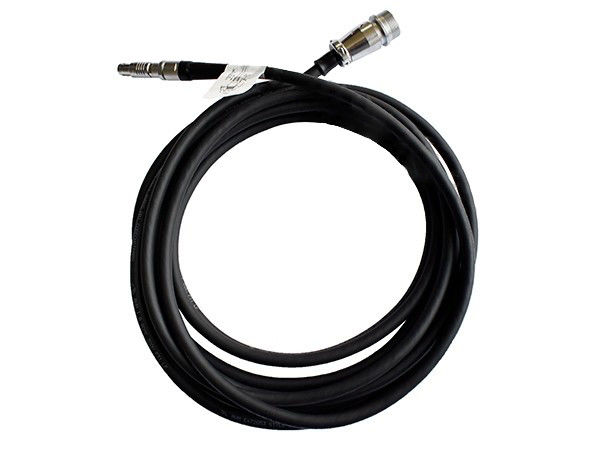

2.1 Picture of real products
