RJ45 Gigabit Industrial Wire Harness 2P X 28AWG Black Network Cable Harness

RJ45 Gigabit, shielded 2P*28AWG twisted-pair black 200MM tooling TCP network cable harness​

It facilitates efficient and organized wiring, simplifies installation and maintenance processes, and enhances the overall performance and safety of industrial systems. With its customized design, high-quality materials, and adherence to industrial standards, the Industrial Wire Harness is a critical component in various industries, including manufacturing, automation, automotive, aerospace, and more.

1.  Product description

  RJ45 Gigabit, shielded 2P*28AWG twisted-pair black 200MM tooling TCP network cable harness RJ45 connector supports gigabit Ethernet connection. Two pairs of 28AWG twisted pairs are used inside the harness. The design of twisted pair can reduce signal crosstalk and interference, and improve the quality and stability of data transmission. The shielding layer of industrial wiring harnesses is made of metal materials, such as aluminum foil or copper mesh braiding shielding. This shielding layer can effectively block external electromagnetic interference and protect the signal from interference and distortion. The industrial wiring harness is designed for network communication using TCP/IP protocol. TCP/IP is the basic protocol for Internet communication, supporting reliable data transmission and network connection.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Computer networks: The industrial wiring harness can be used to set up computer networks, including home networks, office networks and enterprise networks. The industrial wiring harness can connect computers, servers, switches, routers, and other network devices, providing high-speed, reliable data transmission and network connections.

II: Industrial automation: In the field of industrial automation, this industrial harness can be used to connect controllers, sensors, actuators, and other automation devices. The harness is capable of transmitting control signals and data, supporting real-time communication and control requirements in industrial environments.

III: Audio and Video applications: This industrial harness can also be used in audio and video applications, such as connecting audio interfaces, cameras, audio devices, and video displays. The harness is capable of transmitting high-quality audio and video signals to meet the needs of audio and video applications.

1.2 Feature

I: Twisted pair structure: The industrial harness uses twisted pair structure, each pair of wire core is twisted together. This structure can reduce electromagnetic interference and signal crosstalk, improve signal quality and data transmission performance.

II: Flexibility and ease of installation: Due to the use of a thinner wire diameter of 28AWG specification, this industrial harness has good flexibility and bending ability. This makes wiring harness installation and wiring more convenient, suitable for complex network environment and narrow space.

III: Standardized connections: The RJ45 connectors of this industrial harness meet standardized specifications, making them compatible with widely used network devices and interfaces. They are able to connect quickly with various RJ45 interface devices, ensuring stable and reliable data transmission.

2. Product information

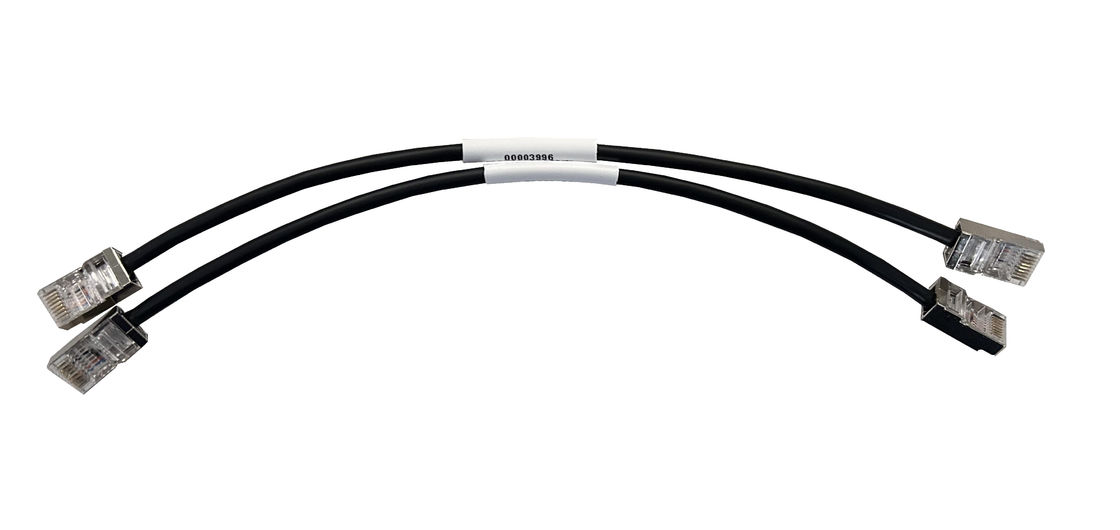

2.1 Picture of real products
