Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: 1-2￥
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Siemens Wiring Harness 6FX3802-5CL12-1AD0 Servo Cable Power Line Connection Wire Servo Harness |
Application Area: |
Servo Motor |
Flame Retardant And Fire Resistant Characteristics: |
EN 60332-1-1 |
3C Rated Voltage Range: |
30 |
Mode Of Insulation: |
CFK, Silicon Free |
Maximum Operating Speed: |
30M/MIN |
Minimum Bend Radius: |
27.0MM |
Work Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
ODM,OEM: |
Accept |
Product Name: |
Siemens Wiring Harness 6FX3802-5CL12-1AD0 Servo Cable Power Line Connection Wire Servo Harness |
Application Area: |
Servo Motor |
Flame Retardant And Fire Resistant Characteristics: |
EN 60332-1-1 |
3C Rated Voltage Range: |
30 |
Mode Of Insulation: |
CFK, Silicon Free |
Maximum Operating Speed: |
30M/MIN |
Minimum Bend Radius: |
27.0MM |
Work Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
ODM,OEM: |
Accept |
Siemens wiring harness 6FX3802-5CL12-1AD0 servo cable power line connection wire servo harness
1. Product description
Number of core wires X cross section (MM2):4 * 2.5
The test voltage based on the supply core:4.0 KV
Test voltage based on signal core wire:2.0 KV
Maximum value of tensile stress:50N/MM2
Minimum bending radius:27.0 MM
Stress of torsion:absolute value30°/M
Surface operating temperature:- 20 ~ + 80℃
Maximum operating speed:30M/MIN
Mode of insulation:CFK/ does not contain silicon
Type of cable:Basic cable
Length of:3M
flammability:EN 60332-1-1
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Siemens wiring harness 6FX3802-5CL12-1AD0 servo cable power line connection wire servo harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Servo motor |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test |
Continuity test |
|
MOQ |
50pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

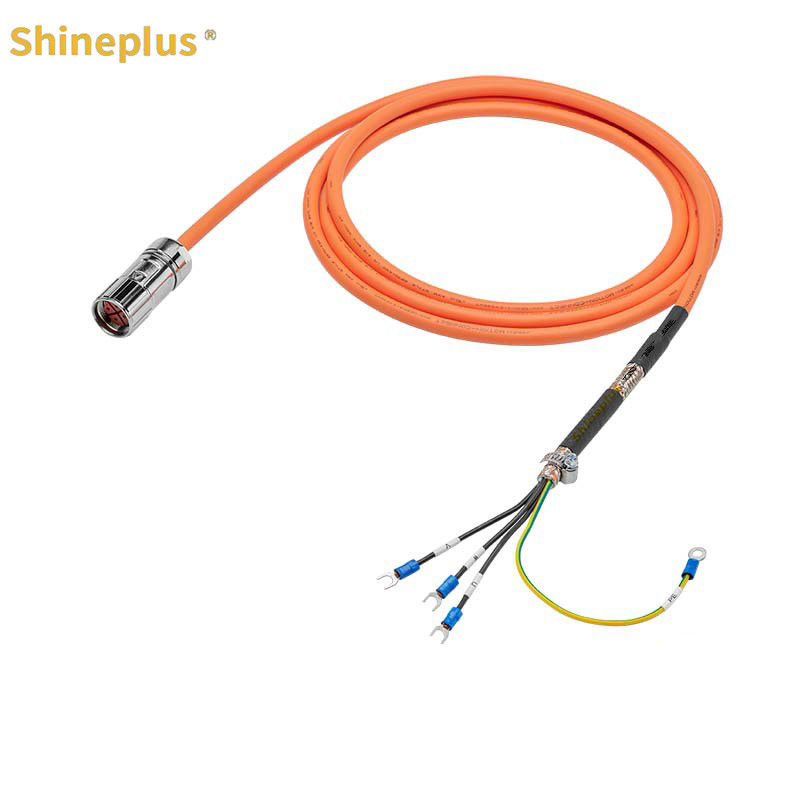

3. Picture of real products
4. Application area
I: Industrial automation: This servo harness is often used to connect encoders and servo motors in industrial automation systems. Encoders are devices used to measure rotational or linear positions, while servomotors are devices used to control and regulate motion. The wiring harness provides reliable power and signal transmission, ensuring correct connection and communication between the encoder and the servo motor.
II: Machining and CNC machine tools: In the field of machining and CNC machine tools, encoders and servo motors are widely used to achieve precise position control and motion control. This servo harness is used to connect encoders and servo motors to the control system for precise position feedback and motion control.
5. Feature
I: High flexibility, bending resistance, not easy to break.
II: Standard connector, stable performance, convenient connection.
