Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: 1-2￥
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
300V Insulated Braided Shield Factory Wholesale Industrial UAV Battery Charging Harness |
Application Area: |
Industrial UAV |
Processing Technic: |
Welding, Assembling, Dispensing |
Specification Of Wire Rod: |
8AWG、24AWG |
Exterior Of Wire Harness: |
Heat Shrink Casing, PET Braided Mesh |
Connector: |
AS150U Connector, P60 Battery Charging Cable Board |
Rated Voltage: |
DC300V, 10 Milliseconds |
Insulation Resistance: |
≥5MΩ |
Work Temperature: |
-20℃~+60℃ |
Impedance On Conduction: |
≤3Ω |
MOQ: |
50 Pcs |
ODM,OEM: |
Accept |
Product Name: |
300V Insulated Braided Shield Factory Wholesale Industrial UAV Battery Charging Harness |
Application Area: |
Industrial UAV |
Processing Technic: |
Welding, Assembling, Dispensing |
Specification Of Wire Rod: |
8AWG、24AWG |
Exterior Of Wire Harness: |
Heat Shrink Casing, PET Braided Mesh |
Connector: |
AS150U Connector, P60 Battery Charging Cable Board |
Rated Voltage: |
DC300V, 10 Milliseconds |
Insulation Resistance: |
≥5MΩ |
Work Temperature: |
-20℃~+60℃ |
Impedance On Conduction: |
≤3Ω |
MOQ: |
50 Pcs |
ODM,OEM: |
Accept |
300V insulated braided shield factory wholesale industrial UAV battery charging harness
1. Product description
300V insulated braided shield factory wholesale industrial UAV battery charging harness equipped with braided shielding structure, using PET braided shielding material. This braided shield can effectively suppress the interference of external interference signals and provide a more stable and reliable charging connection. The PET braided shielding material has good flexibility and bending properties, which enables the wiring harness to be flexibly moved and arranged during charging while maintaining the stability of signal transmission. The insulation design of the battery harness is suitable for voltage classes up to 300V. This allows it to safely transmit and withstand the voltage needed to charge the batteries of industrial drones.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
300V insulated braided shield factory wholesale industrial UAV battery charging harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Gigabit Ethernet connector industrial field |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test |
Continuity test |
|
MOQ |
50pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

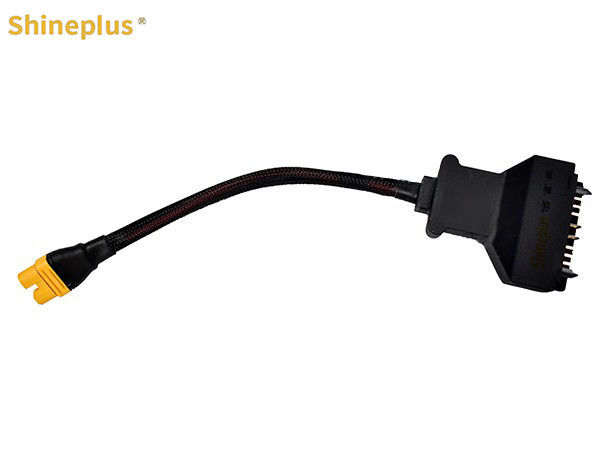

3. Picture of real products
4. Application area
I: Industrial drones: This harness is widely used to charge the batteries of drones in the industrial field. Industrial Uavs have large capacity batteries that require high voltage for charging. The harness provides a safe and reliable power connection, enabling the UAV battery to be effectively charged to meet its requirements for long flight times.
II: Aerospace sector: Uavs are playing an increasingly important role in the aerospace sector for various tasks such as aerial photography, monitoring, survey, and logistics. In the aerospace field, this harness is widely used in the battery charging system of unmanned aerial vehicles to ensure that the battery can be charged safely and efficiently.
5. Feature
I: Charging system integration: This battery harness is integrated with the charging system of the industrial UAV. A charging system may include components such as a charger, a charge controller, a battery management system, etc. The design and selection of wiring harnesses need to consider compatibility with the charging system to ensure effective charging connections and charging performance.
II: Braided shield protection: The harness is equipped with braided shield structure to effectively suppress the interference of external interference signals and provide more stable and reliable charging connection and signal transmission. At the same time, braided shielding provides additional protection, making the harness resistant to mechanical friction and physical stress.
III: Customization requirements: Harness length, connector type, harness outer diameter and other specific requirements can be customized according to user requirements. This ensures the compatibility of the harness with a specific UAV model or charging system and meets the specific application needs of the user.
