UL1571 28AWG Electronic Wiring Harness Red Black 45mm Terminal Copper Conductor Wire

UL1571 28AWG red black 45mm terminal base wireless transmitting module PCBA electronic wiring harness

1. Product description

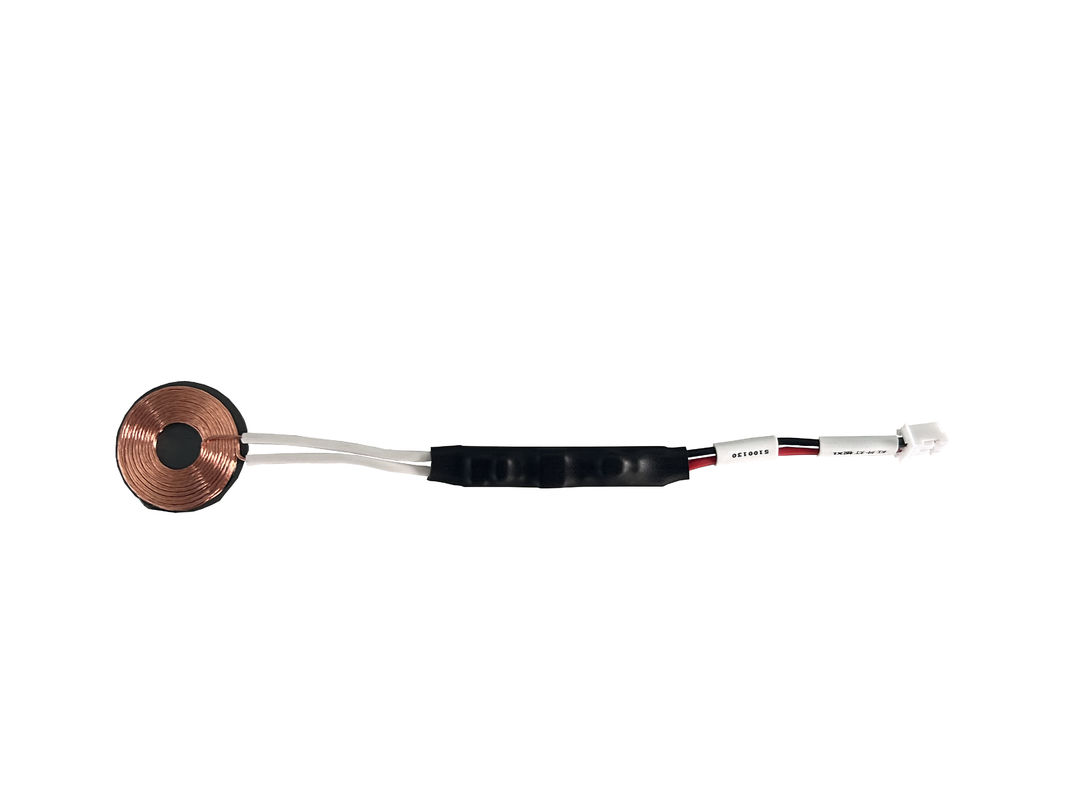

  UL1571 28AWG red black 45mm terminal base wireless transmitting module PCBA electronic wiring harness 28AWG wire is used with a fine diameter for low power applications. The electronic harness contains red and black wires. Red is used to indicate the positive electrode and black is used to indicate the negative electrode. Color discrimination helps to properly connect the power supply and avoid false polarity connections. The end of the electronic harness is equipped with a 20mm length of small size and large current magnetic diaphragm wireless power supply module, charging PCBA module, used to realize the function of wireless communication, the signal of electronic equipment into wireless signal soldier for transmission.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

3. Picture of real products

4. Application area

I: Consumer electronics: The wireless electronic harness can be used in consumer electronics such as smartphones, tablets, audio devices, and home appliances, among others. The electronic harness can be used to connect batteries, power supplies, displays, buttons, sensors and other components for power and signal transmission.

II: Communication equipment: In the field of communication, the wireless electronic harness can be applied to wireless routers, modems, network switches, optical fiber communication equipment, etc. The electronic harness can be used to connect key components such as antennas, RF modules, network interfaces, power supplies, and data lines.

III: Automotive electronics: In the automotive industry, this wireless electronic harness can be used in automotive electronic systems such as in-vehicle entertainment systems, body control modules, safety systems, and instrument panels. The compact and flexible wire harness can withstand vibration, temperature changes and electromagnetic interference in the automotive environment, ensuring reliable power and signal transmission.

5. Feature

I: Temperature resistance: According to UL1571 standard, the insulation material used in the wireless electronic harness has good temperature resistance and can work in the temperature range of -40~+80℃. This allows the electronic harness to maintain stable performance in both high and low temperature environments.

II: High flexibility: The wireless electronic harness uses soft insulation materials, making the harness has high flexibility. This allows the harness to be easily bent and installed in narrow Spaces, helping to cope with complex wiring requirements.

III: Wireless transmitting function: The wireless electronic wire harness integrates wireless transmitting components to realize wireless communication function. This makes the electronic harness suitable for applications requiring wireless data transmission, such as wireless sensor networks, remote control and communication systems, among others.
