22AWG PVC Electronic Wire Harness Transparent Sheath Halogen Free Flame Retardant

Halogen-free flame retardant UL1007 22AWG with lock spring PVC transparent sheath lock switch electronic wiring harness

1. Product description

  Halogen-free flame retardant UL1007 22AWG with lock spring PVC transparent sheath lock switch electronic wiring harness use 22AWG wire for moderate current applications. 22AWG wires can withstand higher current loads than thinner wires. The electronic harness is equipped with lock springs to provide reliable locking and connection between connectors and sockets. This ensures that the electronic harness will not be accidentally loosened in case of vibration or movement. The electronic switch harness is made of halogen-free flame retardant material, which has good flame retardant performance. And the electronic switching harness has excellent electrical insulation performance, can effectively isolate the wire, avoid current leakage and short circuit phenomenon, to ensure the safety and reliability of the circuit.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

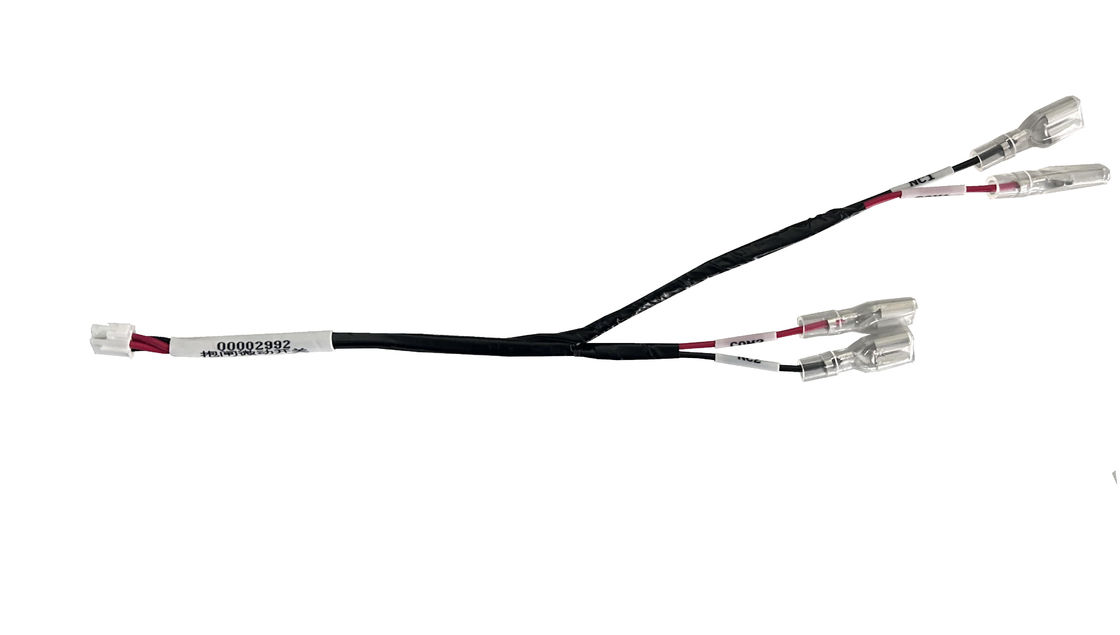

3. Picture of real products

4. Application area

I: Electronic equipment: The electronic switch harness is suitable for all kinds of electronic equipment, such as computers, communication equipment, household appliances, audio and video equipment, etc. The harness can be used to connect switches, buttons, control panels, displays, interface modules and other electronic components.

II: Automation equipment: In the automation industry, this electronic switching harness can be used to connect sensors, actuators, PLCS (programmable logic controllers), and other control devices. The harness is able to withstand high loads and frequent movements, ensuring reliable signal transmission and power supply.

III: Automotive electronics: The electronic switch harness is also widely used in automotive electronic systems to connect vehicle-mounted control units, sensors, instrument panels, vehicle-mounted entertainment systems and body electronics, etc. The electronic switching harness can withstand the vibration, temperature changes and electromagnetic interference of the automotive environment.

5. Feature

I: High temperature resistance: The electronic switching harness has good high temperature resistance, usually able to work in the temperature range of 80°C to 105°C. The electronic switching harness is suitable for applications in high temperature environments and helps prevent aging or deformation of the harness under high temperature conditions.

II: Bending performance: The electronic switching harness has good bending performance, which can maintain the connectivity and reliability of the wire when bending. This makes the electronic switching harness suitable for applications that require frequent bending or installation in a limited space.

III: Anti-interference capability: The design and material selection of the electronic switching harness have good anti-interference performance, which can reduce the influence of external interference on signal transmission. This helps maintain the stability and reliability of the signal.
