Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
300V Tin-plated Waterproof Plug M12-CON Brushless Quick Removal Electronic Wiring Harness |
Application Area: |
Internal Wiring Of Electric Wheelchair Machine |
Wire Type: |
UL1007 24AWG、Noul 2c*20#+5c*24# |
Conector: |
M12 8 Core Waterproof Plug、plastic Shell、terminal |
Color: |
Black |
Length: |
320mm |
OD: |
6.5mm |
Rated Voltage: |
300V |
Insulation Impedance: |
5MΩ |
Conductor Resistance: |
5Ω |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL031A149-1 |
Product Name: |
300V Tin-plated Waterproof Plug M12-CON Brushless Quick Removal Electronic Wiring Harness |
Application Area: |
Internal Wiring Of Electric Wheelchair Machine |
Wire Type: |
UL1007 24AWG、Noul 2c*20#+5c*24# |
Conector: |
M12 8 Core Waterproof Plug、plastic Shell、terminal |
Color: |
Black |
Length: |
320mm |
OD: |
6.5mm |
Rated Voltage: |
300V |
Insulation Impedance: |
5MΩ |
Conductor Resistance: |
5Ω |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL031A149-1 |
300V tin-plated waterproof plug M12-CON brushless quick removal electronic wiring harness
1. Product description
300V tin-plated waterproof plug M12-CON brushless quick removal electronic wiring harness the contact part of the plug is tinned to increase its
corrosion resistance and electrical conductivity, ensuring stable current transmission and good contact performance. The wiring harness uses
M12-CON connectors, which are a commonly used industrial connector type. The M12 connector is compact and reliable. The harness is designed
as a brushless quick removal type for easy installation and maintenance. It adopts the connection mode that can be quickly inserted and removed,
saving time and labor cost. The harness is designed as a brushless quick removal type for easy installation and maintenance. It adopts the
connection mode that can be quickly inserted and removed, saving time and labor cost. The harness is waterproof and can work reliably in wet or
humid environments. Provides reliable protection against moisture infiltration into the harness.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
300V tin-plated waterproof plug M12-CON brushless quick removal electronic wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Internal wiring of electric wheelchair machine |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

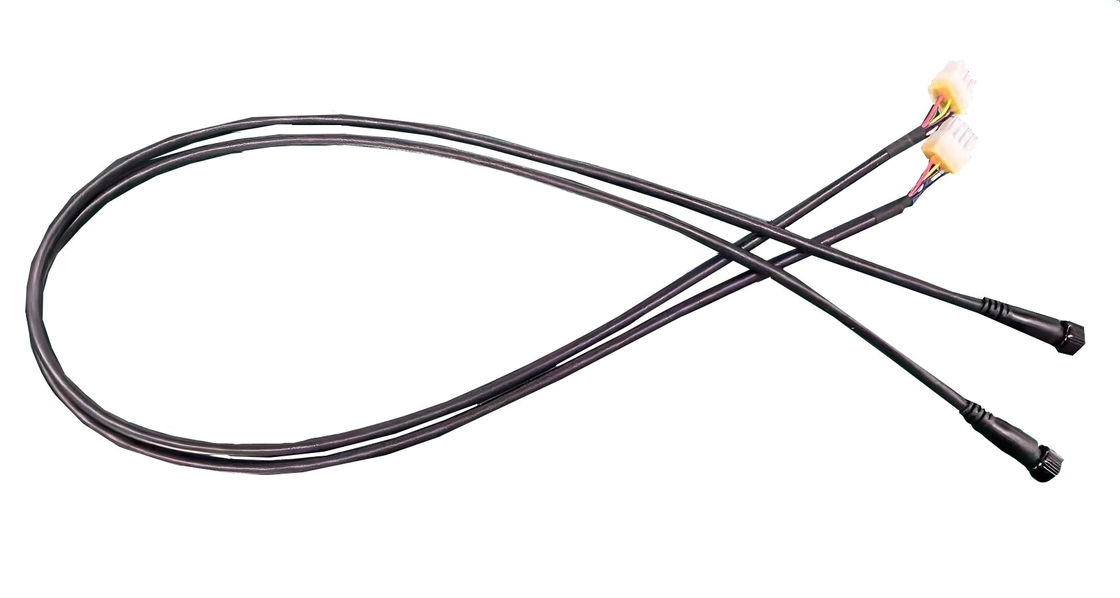

3. Picture of real products
4. Application area
I: Electric wheelchairs: Wire harnesses can be used to connect battery packs, motors, controllers, and other electronic components of electric wheelchairs. They are used to transmit power and signals for motor drive and control functions.
II: Sensors and feedback devices: Wiring harnesses can be used to connect various sensors and feedback devices, such as speed sensors, tilt sensors, battery level indicators, etc. They are used to collect data and transmit it to the control system to achieve intelligent and safe performance of the wheelchair.
III: Lighting system: The harness can also be used to connect the lighting system of the wheelchair, including headlights, taillights, indicator lights, etc. They are used to provide power and signal transmission to ensure the normal operation and safety performance of the lighting system.
5. Feature
I: Brushless quick disassembly: The harness design has the function of quick disassembly to facilitate the installation and maintenance of the equipment. This feature is useful for applications where wiring harnesses need to be replaced or repaired frequently, saving time and labor costs.
II: Tinned anti-corrosion: THE plug of the harness is tinned, which has good anti-corrosion performance and can extend the service life of the harness.
III: Waterproof design: The harness is waterproof and can work in humid or wet environment. This enables the harness to be used outdoors or in applications that require waterproof protection.
