Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: UL2464 or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
DB26 Three Rows Of Riveting End Temperature Acquisition Keypad Electronic Wiring Harness |
Application Area: |
Industrial Automation, Environmental Monitoring, Energy Management, Etc |
Wire Type: |
UL1007 26# |
Conductor Material: |
Copper Or Oxygen-free Copper |
Conector: |
DB26,10 Core PRG Socket,plastic Shell |
Color: |
Black |
Length: |
200mm |
Rated Voltage: |
300V |
Insulation Impedance: |
≥10Ω |
Work Temperature: |
-40~+125℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A048 |
Product Name: |
DB26 Three Rows Of Riveting End Temperature Acquisition Keypad Electronic Wiring Harness |
Application Area: |
Industrial Automation, Environmental Monitoring, Energy Management, Etc |
Wire Type: |
UL1007 26# |
Conductor Material: |
Copper Or Oxygen-free Copper |
Conector: |
DB26,10 Core PRG Socket,plastic Shell |
Color: |
Black |
Length: |
200mm |
Rated Voltage: |
300V |
Insulation Impedance: |
≥10Ω |
Work Temperature: |
-40~+125℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A048 |
DB26 three rows of riveting end temperature acquisition keypad electronic wiring harness
1. Product description
DB26 three rows of riveting end temperature acquisition keypad electronic wiring harness twisted-pair structure is adopted, that is, two wires are
wound together at a certain step distance to form a twisted-pair. This design can reduce electromagnetic interference and signal crosstalk, and
improve the stability and reliability of signal transmission. The riveting head of the harness ensures reliable electrical and mechanical connections.
The riveting head is fixed with hot glue to provide good signal transmission and mechanical strength.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
DB26 three rows of riveting end temperature acquisition keypad electronic wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Industrial automation, environmental monitoring, energy management, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

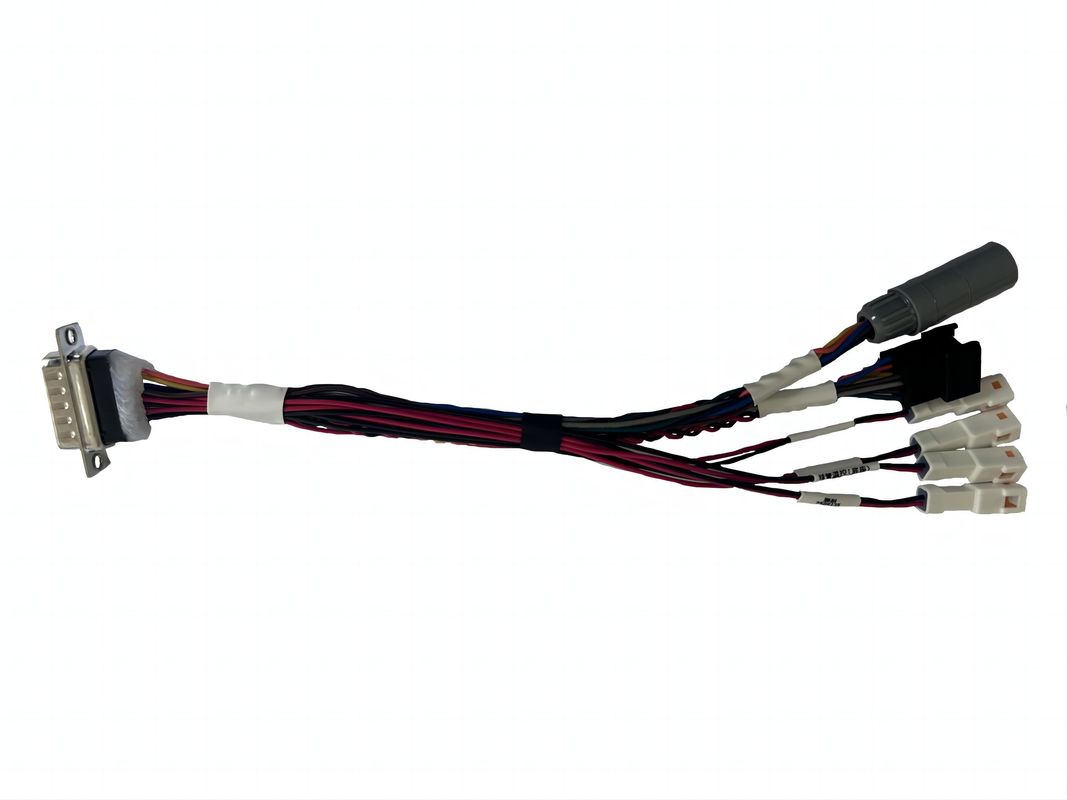

3. Picture of real products
4. Application area
I: Temperature acquisition system: This harness is used to connect temperature sensors and data acquisition equipment to realize the acquisition and transmission of temperature data. It is widely used in industrial automation, environmental monitoring, energy management and other fields for monitoring and controlling temperature.
II: Instrumentation: wiring harnesses can be used to connect temperature sensors, controllers and displays in instrumentation to achieve temperature measurement, data processing and result display. It is suitable for laboratory instruments, industrial instruments, medical equipment and other fields.
III: Keyboard electronic system: The wiring harness connects the circuit board, keys, LED indicators and other components of the keyboard electronic system to achieve signal transmission and power supply. This kind of wiring harness is common in computer keyboard, industrial control keyboard, game console keyboard and other electronic equipment.
5. Feature
I: High temperature tolerance: The wires and insulation materials of the harness have good high temperature tolerance and can maintain stable performance in high temperature environment, which is suitable for temperature monitoring and control applications.
II: DB26 triple row rivet head connector: The harness uses the DB26 triple row rivet head connector with 26 pins that can be connected to the corresponding socket to provide reliable electrical and mechanical connections.
