Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: UL2464 , UL1007 or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Double Core Shield Electronic Wiring Harness PVC Insulating Customization Processing |
Application Area: |
Industrial Equipment (servo System) Robot |
Terminal Plastic Case: |
Optional |
Conductor Material: |
Oxygen-free Copper |
Insulating Material: |
PVC |
Color: |
Black |
Wire Type: |
UL2464 , UL1007 Or Customized |
OD: |
3.4mm |
Length: |
165mm |
Conduction Impedance And Insulation Resistance: |
2Ω，5MΩ |
DV High Pressure: |
300V |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL505A179 |
Product Name: |
Double Core Shield Electronic Wiring Harness PVC Insulating Customization Processing |
Application Area: |
Industrial Equipment (servo System) Robot |
Terminal Plastic Case: |
Optional |
Conductor Material: |
Oxygen-free Copper |
Insulating Material: |
PVC |
Color: |
Black |
Wire Type: |
UL2464 , UL1007 Or Customized |
OD: |
3.4mm |
Length: |
165mm |
Conduction Impedance And Insulation Resistance: |
2Ω，5MΩ |
DV High Pressure: |
300V |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL505A179 |
Double Core Shield Electronic Wiring Harness PVC Insulating Customization Processing
1. Product description
Double core shield electronic wiring harness pvc insulating customization processing with two core wires, each core wire has an independent
shielding layer, used to suppress the interference of external interference signals. The dual-core shielding design can provide higher anti-
interference ability and ensure the stability and reliability of signal transmission.The electronic wiring harness using oxygen free copper conductor,
high energy rate, plug and play, flexible and strong, longer life. The materials required for the wire meet the requirements of environmental
protection.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Double core shield electronic wiring harness PVC insulating customization processing |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Industrial equipment (servo system) robot, printing industry, packaging industry, textile industry, CNC industry, electronic assembly industry, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

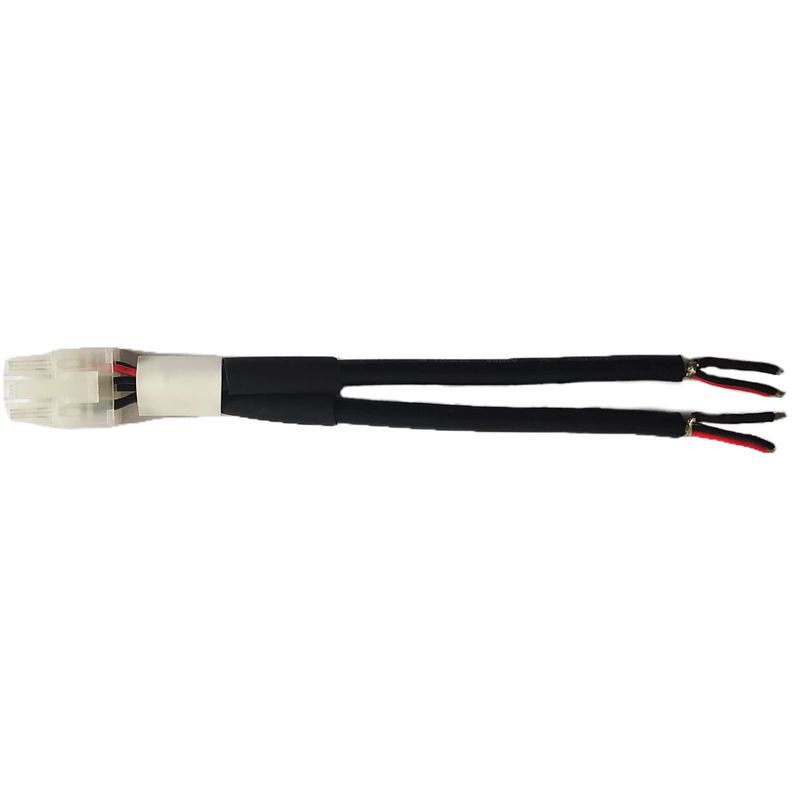

3. Picture of real products
4. Application area
I: Low frequency signal transmission: The electronic harness is suitable for low frequency signal transmission field, such as audio equipment, internal connection of small electronic equipment, sensor signal transmission, etc. It can provide stable signal transmission and reliable connection.
II: Consumer electronics: The electronic harness is often used in a variety of consumer electronics products, such as audio equipment, television, computer speakers, etc. It can connect internal circuits, transmit audio and control signals, and ensure the normal operation of audio equipment.
III: Automation equipment: This electronic harness plays an important role in automation equipment and is used to connect various sensors, actuators, and controllers. It can transmit control signals and data to realize the normal operation of automation equipment.
5. Feature
I: Dual-core shielding design: Each core wire of the electronic harness has an independent shielding layer to provide higher anti-interference ability and protect the signal from external interference.
II: PVC insulation material: The electronic harness uses PVC (polyvinyl chloride) as insulation material, which has good insulation performance and durability. PVC insulation material has low cost and good mechanical strength in low frequency signal transmission.
