Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Highly flexible wire harness
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Yellow And Green Double Twisted Braided Shield DB Head -- Surveying Equipment Wiring Harness |
Application Area: |
Survey Equipment (UAV, Lidar System) |
Wire Type: |
AVSS 0.5mm² Green And Yellow Twisted Pair, AVSS 1.5mm² |
Connector: |
M23 19PIN Connector Female Head, DB9 Female Head, DC Head |
Processing Technic: |
Welding, Molding, Assembly |
Color: |
Black |
Length: |
500mm |
Conductor Resistance: |
≤3Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Product Name: |
Yellow And Green Double Twisted Braided Shield DB Head -- Surveying Equipment Wiring Harness |
Application Area: |
Survey Equipment (UAV, Lidar System) |
Wire Type: |
AVSS 0.5mm² Green And Yellow Twisted Pair, AVSS 1.5mm² |
Connector: |
M23 19PIN Connector Female Head, DB9 Female Head, DC Head |
Processing Technic: |
Welding, Molding, Assembly |
Color: |
Black |
Length: |
500mm |
Conductor Resistance: |
≤3Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Yellow and green double twisted braided shield DB head -- surveying equipment wiring harness
1. Product description
Yellow and green double twisted braided shield DB head -- surveying equipment wiring harness a double stranded structure means that two wires
are twisted together in a spiral manner. The twisted-pair structure reduces electromagnetic interference and signal crosstalk, providing more stable
and reliable signal transmission. The harness has a braided shielding layer, usually composed of metal braided mesh or foil layer. The braided
shielding layer can effectively block external electromagnetic interference and ensure the quality and stability of the signal. One end of the harness
is equipped with a DB head connector. The DB head is a common connector type with multiple pins and jacks that are used to connect and
transmit signals reliably. It is often used to connect computer equipment and measuring equipment.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Yellow and green double twisted braided shield DB head -- surveying equipment wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Survey equipment (UAV, lidar system) |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Salt spray test: ≥72H,Continuity test:100% |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

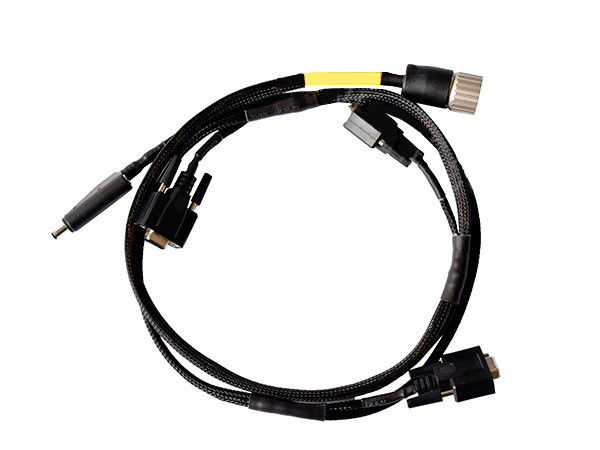

3. Picture of real products
4. Application area
I: Industrial automation: In the field of industrial automation, wiring harnesses for measuring equipment can be used to connect various sensors, instruments, and control devices. For example, sensors for temperature measurement, pressure measurement, liquid level measurement, flow measurement, etc., can be connected to the control system through this harness to achieve accurate data acquisition and monitoring.
II: Medical diagnostic devices: Medical diagnostic devices, such as blood pressure meters, blood glucose meters, thermometers, etc., usually need to be connected to sensors and control units for accurate physiological parameter measurements. The harness can be used to connect the sensors and control units of these devices, ensuring reliable signal transmission and measurement accuracy.
III: Data acquisition system: Data acquisition system is used to collect and record various environmental parameters and signals. The wiring harness of the measuring equipment can connect sensors, data collectors, and data processing units, supporting various data acquisition applications, such as environmental monitoring, meteorological measurement, and structural monitoring.
5. Feature
I: Braided shielding: The harness has a braided shielding layer, usually composed of metal braided mesh or foil layer. The braided shielding layer can effectively block external electromagnetic interference and ensure the quality and stability of the signal.
II: Anti-interference performance: braided shielding and twisted-pair structure provide strong anti-interference ability, which can reduce the influence of external electromagnetic interference on the signal. This is important for measuring devices, which require accurate signal transmission and stable measurement results.
