Noise Reduction Industrial Wire Harness High Frequency PCB Harness 600mm

High frequency transmission noise reduction and anti-interference PCB harness

1.  Product description

  High frequency transmission noise reduction and anti-interference PCB harness by optimizing the layout and routing mode of the wire harness,

the length and crossing of the signal transmission path are reduced, and the transmission loss and crosstalk of the signal are reduced. Appropriate

interlayer layout and shielding layers are used to reduce interference between signals. In the multi-layer PCB harness, the separation of signal

layer and power layer can reduce the coupling and mutual interference between signal and power supply. This can be achieved by laying out

signal and power layers on different layers, as well as using ground plane layers for shielding.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Communication equipment: In high frequency communication equipment, such as wireless base stations, communication network equipment and satellite communication systems, the stability and reliability of signal transmission are required. The PCB harness with noise reduction and anti-interference can reduce signal loss, cross-talk and external electromagnetic interference, and improve communication quality and signal transmission distance.

II: High-speed computing and data transmission equipment: In high-performance computers, servers, data centers, and network equipment, the stability of high-speed data transmission is critical for system performance. The use of noise reduction and anti-interference PCB harness can reduce signal distortion, clock jitter and cross-talk, and improve data transmission rate and reliability.

III: Ships and aircraft: The harnesses are also applicable to navigation and control systems in ships and aircraft. It can connect to Beidou navigation equipment, provide power and data transmission, and help with positioning and navigation of ships and aircraft. In the hydraulic control system, it can connect the hydraulic valve, sensor and control unit to realize the electrical control of the hydraulic system.

1.2 Feature

I: Strong anti-interference ability: using shielding material, shielding sleeve, shielding cover or shielding layer and other measures, effectively isolate the signal inside the harness from the influence of external electromagnetic interference. These shielding measures can prevent the entry of interference signals and improve the anti-interference ability of the harness.

II: Professional grounding design: reasonable grounding design can reduce common mode noise and ground loop interference. The resistance and inductance of the grounding loop are reduced and the introduction of noise is reduced by the separated ground plane layer, star grounding structure and reducing the sharing of the grounding loop.

III: Application of EMI filter: adding electromagnetic interference (EMI) filter in the wiring harness can effectively suppress high frequency noise and interference signals. These filters can selectively filter out the noise of a specific frequency band and maintain the purity of the signal.

2. Product information

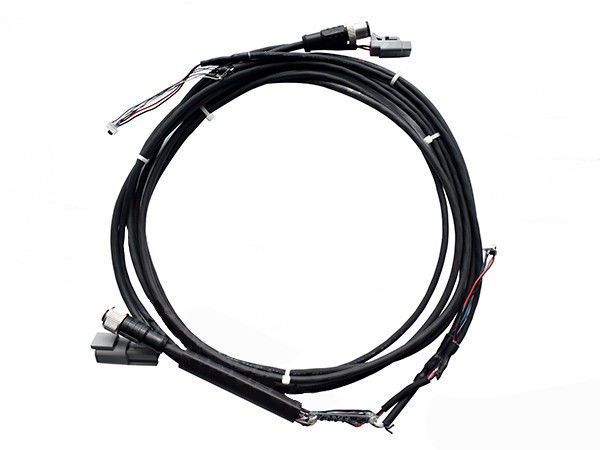

2.1 Picture of real products
