2000mm Industrial Wire Harness Machine Tool Harness DB9 Serial Interface Harness

Machine tool harness -- DB9 serial interface harness(China wire harness manufacturer)

1.  Product description

  Machine tool harness -- DB9 serial interface harness(China wire harness manufacturer)consists of one or more cables that contain wires for

transmitting signals, as well as insulation and shielding to protect signals from interference. DB9 serial interface harness is usually used to transmit

serial data signals, such as RS232, RS422, RS485 and other protocols. These protocols are often used in machine tools for data exchange and

communication with external devices (such as computers, PLCS, sensors, etc.).​

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I:Communication protocols: The DB9 serial interface harness supports a variety of communication protocols, the most common of which are RS232, RS422, and RS485. These protocols are used in machine tool equipment to transmit data and control signals. RS232 is a common one-way or two-way serial communication protocol, which is suitable for short distance communication. RS422 and RS485 are differential signal transmission protocols for long distance communication, which have better anti-interference performance.

II:Data acquisition and monitoring: The DB9 serial interface harness can be used to connect machine tool equipment with data acquisition equipment or monitoring system. Through serial communication, operation data, status information and fault diagnosis of machine tools can be obtained in real time, and data analysis and monitoring can be carried out.

III:Automation control system: DB9 serial interface harness also plays an important role in automation control system. It can be used to connect machine tool equipment with automatic control equipment, such as robots, automatic feeding systems, automated assembly lines, etc. Through serial communication, the coordinated work and data transmission between machine tool equipment and automatic control equipment are realized.

1.2 Feature

I: Insulation and shielding: The DB9 serial interface harness usually uses insulation and shielding to protect the signal from interference. The insulation material prevents electrical interference between the leads, while the shielding layer blocks the influence of external electromagnetic interference on the signal.

II: Easy installation and connection: The DB9 serial interface harness uses a DB9 connector with a threaded locking mechanism that makes installation and connection easy and convenient. Proper insertion and connection of the harness ensures correct alignment of leads and stable connection.

III: Cost effectiveness: The relatively low cost of the DB9 serial interface harness makes it one of the commonly used serial communication solutions in machine tool equipment. The DB9 serial interface harness is still an economical choice for some older machine tools or specific application scenarios.

2. Product information

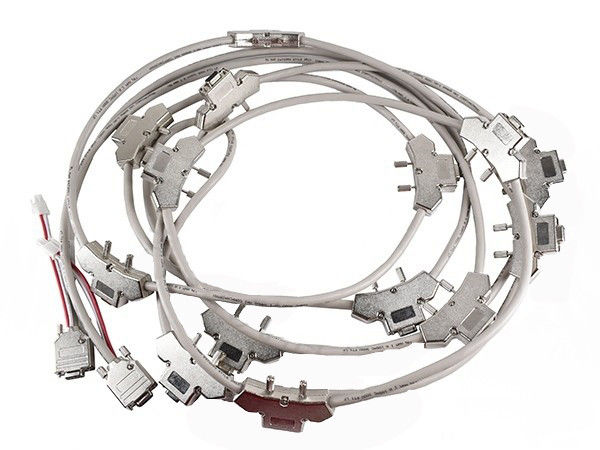

2.1 Picture of real products
