Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Highly flexible wire harness
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Electric Wheelchair Control Wire Harness Waterproof Insulating And High Temperature Resistant |
Application Area: |
Electric Wheelchair,electro-tricycle |
Wire Type: |
Highly Flexible Wire Harness |
Connector: |
Plastic Housing, Terminal |
Color: |
Black |
OD: |
11.8mm |
Length: |
1230mm |
Withstand Voltage: |
300V |
Insulation Impedance: |
5MΩ |
Conduction Impedance: |
5Ω |
Waterproofing Grade: |
IP67 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL117A076 |
Product Name: |
Electric Wheelchair Control Wire Harness Waterproof Insulating And High Temperature Resistant |
Application Area: |
Electric Wheelchair,electro-tricycle |
Wire Type: |
Highly Flexible Wire Harness |
Connector: |
Plastic Housing, Terminal |
Color: |
Black |
OD: |
11.8mm |
Length: |
1230mm |
Withstand Voltage: |
300V |
Insulation Impedance: |
5MΩ |
Conduction Impedance: |
5Ω |
Waterproofing Grade: |
IP67 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL117A076 |
Electric Wheelchair Control Wire Harness Waterproof Insulating And High Temperature Resistant
1. Product description
Electric wheelchair control wire harness waterproof insulating and high temperature resistant high quality wire and outer sheath materials are
used to ensure the stability and durability of signal transmission.With accurate signal transmission capability, it can reliably transmit and analyze
various control commands and sensor data in electric wheelchairs.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Electric wheelchair control wire harness waterproof insulating and high temperature resistant |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Electric wheelchair,electro-tricycle |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Salt spray test: ≥72H,Continuity test:100% |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

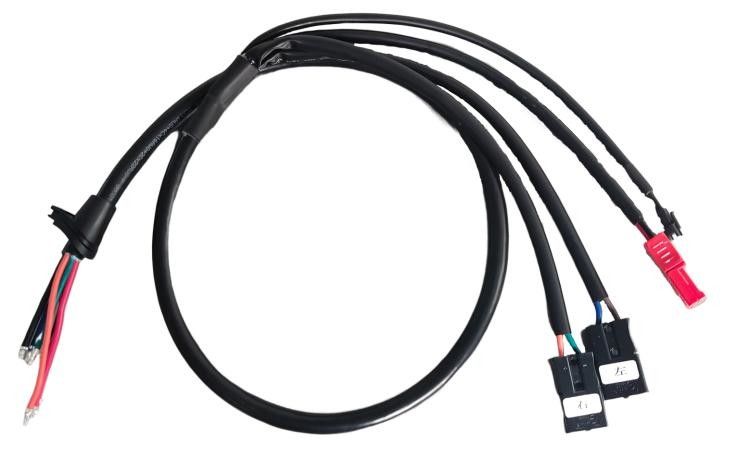

3. Picture of real products
4. Application area
I: Healthcare: Electric wheelchairs are widely used in healthcare Settings such as hospitals, rehabilitation centers, and home care. Waterproof, insulated and high temperature resistant control harness can ensure the safety and reliability of electric wheelchairs during cleaning, disinfection and patient contact. They are able to withstand the effects of high temperature disinfection and cleaning fluids, while preventing moisture from seeping into electrical systems and protecting electronic components from damage.
II: Public transport: Electric wheelchairs are used as accessible transport in the public transport systems of some cities to provide convenience for passengers with limited mobility. In this application, the electric wheelchair control harness needs to be waterproof, insulated and high temperature resistant to cope with the use of different weather and environmental conditions, to ensure the safety and comfort of passengers.
5. Feature
I: Waterproof performance: The electric wheelchair control harness adopts waterproof design, using waterproof insulation materials and connectors, which can effectively prevent water from infiltrating into the harness and protect electrical connections and electronic components from water erosion. This makes electric wheelchairs more reliable when used in humid environments.
II: High temperature resistance: electric wheelchair control harness needs to be able to withstand high temperature environment work. Therefore, wire harnesses usually use high temperature resistant wires and insulating materials, which can maintain stable performance and reliability under high temperature conditions. This enables the wiring harness to work properly in the electronic control system of the electric wheelchair and to be used for a long time even in high temperature environments.
