Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: RVV 6* 26#
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
High Frequency 6 Pin Transmission Industrial Wire Harness With Magnetic Ring |
Application Area: |
Industrial Equipment (servo System) Robot |
Wire Type: |
RVV 6* 26# |
Conductor Material: |
Oxygen-free Copper |
Connector: |
Amphenol Or Optional |
Magnet Ring: |
Ferrite Bead |
Color: |
Black |
OD: |
5.6mm |
Length: |
810mm |
Conduction Impedance And Insulation Resistance: |
≤5Ω,≥10MΩ |
Insulating Material: |
PVC |
DV High Pressure: |
300V |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL341A048 |
Product Name: |
High Frequency 6 Pin Transmission Industrial Wire Harness With Magnetic Ring |
Application Area: |
Industrial Equipment (servo System) Robot |
Wire Type: |
RVV 6* 26# |
Conductor Material: |
Oxygen-free Copper |
Connector: |
Amphenol Or Optional |
Magnet Ring: |
Ferrite Bead |
Color: |
Black |
OD: |
5.6mm |
Length: |
810mm |
Conduction Impedance And Insulation Resistance: |
≤5Ω,≥10MΩ |
Insulating Material: |
PVC |
DV High Pressure: |
300V |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL341A048 |
High frequency 6 pin transmission industrial wire harness with magnetic ring
1. Product description
High frequency 6 pin transmission industrial wire harness with magnetic ring with 6 pins for signal or power transmission. These pins can be
customized to meet the interface requirements of different applications. The harness has a magnetic ring to suppress electromagnetic interference.
The magnetic ring can absorb and suppress electromagnetic waves in the wire bundle, improving the quality and stability of the transmitted signal.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
High frequency 6 pin transmission industrial wire harness with magnetic ring |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Industrial equipment (servo system) robot |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test ≥1.4KG |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

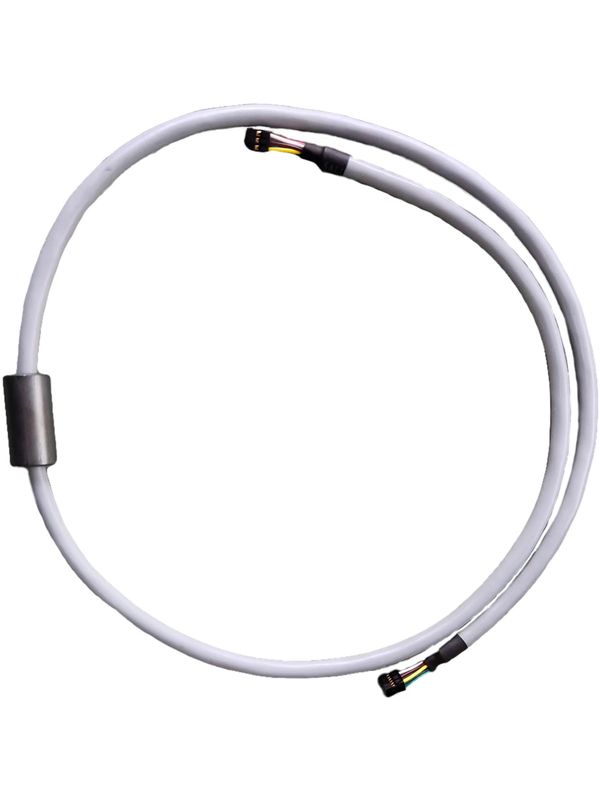

3. Picture of real products
4. Application area
I: Communication equipment: The harness is suitable for all kinds of communication equipment, including wireless communication equipment, network equipment, sensors, etc. It is capable of transmitting high-frequency signals, ensuring reliable connection of communication equipment and high-quality signal transmission.
II: Medical equipment: This harness is suitable for high frequency signal transmission in medical equipment. It can connect medical instruments, monitoring devices, diagnostic devices, etc., ensuring high-quality signal transmission and reliable device operation.
III: Test and measurement equipment: This harness is suitable for high frequency signal transmission in test and measurement equipment. It can connect oscilloscopes, spectrum analyzers, signal generators and other equipment to provide reliable signal transmission and accurate test functions.
5. Feature
I: Magnetic ring design: The harness has a magnetic ring to suppress electromagnetic interference. The magnetic ring can absorb and suppress electromagnetic waves in the wire bundle, improving the quality and stability of the transmitted signal.
II: 6-pin transmission: The harness has 6 pins for signal or power transmission. These pins can be customized to meet the interface requirements of different applications.
