Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Highly flexible wire harness or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
IP68 Waterproof DC Power Cable H1Z2Z2-K 360mm Industrial Wire Harness Terminal |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
Highly Flexible Wire Harness |
Conductor Material: |
Oxygen Free Copper |
Water Joint: |
M16 Single Hole Or Optional |
Heat Shrink Tubing: |
Black Insulated Heat Shrinkable Casing |
OD: |
10mm |
Color: |
Black |
Length: |
360mm |
Voltage And Current: |
300V,30A |
Insulation Strength, Insulation Resistance, Contact Resistance: |
≥3000V,≥50MΩ,≤1Ω |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1885 |
Product Name: |
IP68 Waterproof DC Power Cable H1Z2Z2-K 360mm Industrial Wire Harness Terminal |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
Highly Flexible Wire Harness |
Conductor Material: |
Oxygen Free Copper |
Water Joint: |
M16 Single Hole Or Optional |
Heat Shrink Tubing: |
Black Insulated Heat Shrinkable Casing |
OD: |
10mm |
Color: |
Black |
Length: |
360mm |
Voltage And Current: |
300V,30A |
Insulation Strength, Insulation Resistance, Contact Resistance: |
≥3000V,≥50MΩ,≤1Ω |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1885 |

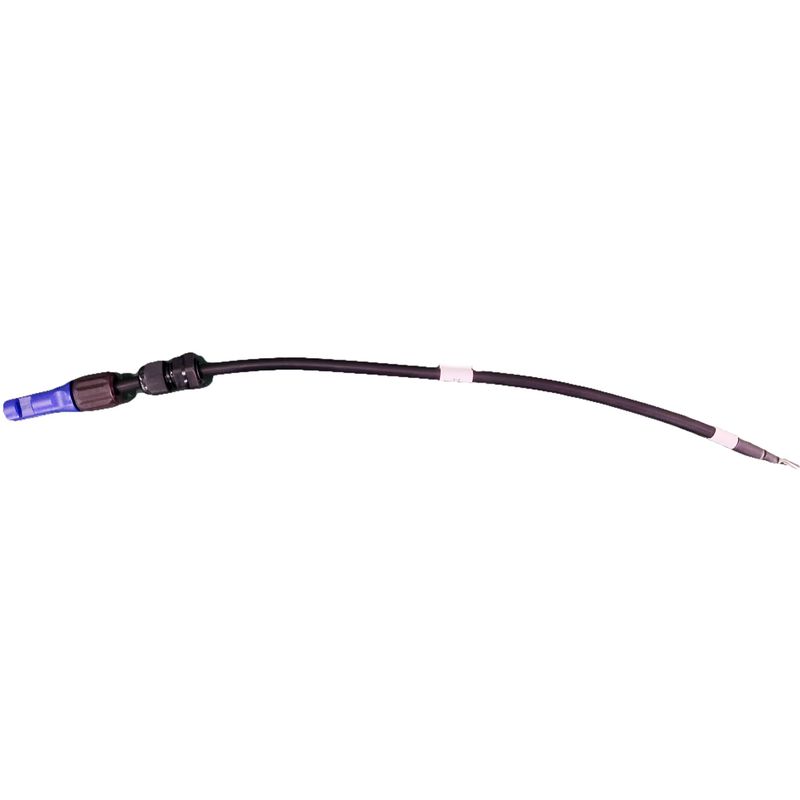

IP68 waterproof DC power cable H1Z2Z2-K 360mm industrial wire harness terminal
1. Product description
IP68 waterproof DC power cable H1Z2Z2-K 360mm industrial wire harness terminal terminal customers customize on demand. Plug and play,
flexible and firm, longer life.The wire harness and terminal are firmly fixed,All terminals can withstand more than 50N tension. The terminal should
not fall off in the heat shrinkable tube sheath. The heat shrinkable tube should meet UL94-V0. Conduction test 100%.Waterproof grade: IP68.All
the materials used meet the requirements of environmental protection.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name |
IP68 waterproof DC power cable H1Z2Z2-K 360mm industrial wire harness terminal |
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
Product application |
Assembly of internal equipment of various types of vehicles |
Length, color |
Customized according to customer needs |
Samples |
Samples confirmed first before mass production |
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Conduction test 100% |
MOQ |
Negotiable |
After-sales service |
Authentic guaranteed, factory outlets center |
3. Picture of real products
4. Application area
I: Factory automation: The harness terminals can be widely used for power transmission and connection in factory automation systems. It can connect various industrial equipment and machines, such as machine tools, automated production lines, assembly lines, etc., to provide them with a stable DC power supply.
II: Mechanical equipment: Harness terminals are suitable for power connection of various mechanical equipment, such as robots, conveying equipment, lifting equipment, etc. It can provide reliable DC power transmission to support the normal operation and control of mechanical equipment.
III: Power supply: The harness terminals can be used for DC power transmission in power supply systems. It can connect power devices, battery packs, inverters, etc., to provide reliable power connection and supply to the power system.
5. Feature
I: Waterproofing: The harnesses are designed with an IP68 rating to provide reliable waterproofing in harsh environmental conditions. It can effectively prevent moisture infiltration into the wiring harness and protect power cords and terminals from water moisture or wet environment damage.
II: Industrial durability: The harness is made of high quality materials, with good durability and abrasion resistance. It is capable of withstanding certain physical and environmental stresses in industrial environments, providing reliable long-term use.
