15 Core Industrial Wire Harness Transmission High Frequency Single Shielded

15 core industrial wire harness transmission high frequency single shielded

1. Product description

  15 core industrial wire harness transmission high frequency single shielded used to prevent electromagnetic interference. Use oxygen free

copper conductor to work, high energy rate, DB15 plug gold-plated contacts can be repeatedly inserted and removed after reliable connection.The

wire harness adopts single shielding structure, which has excellent shielding effect. The shielding layer is composed of high-quality metal

shielding, which can effectively reduce the influence of external electromagnetic interference on signal transmission and ensure the reliability and

stability of signals.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

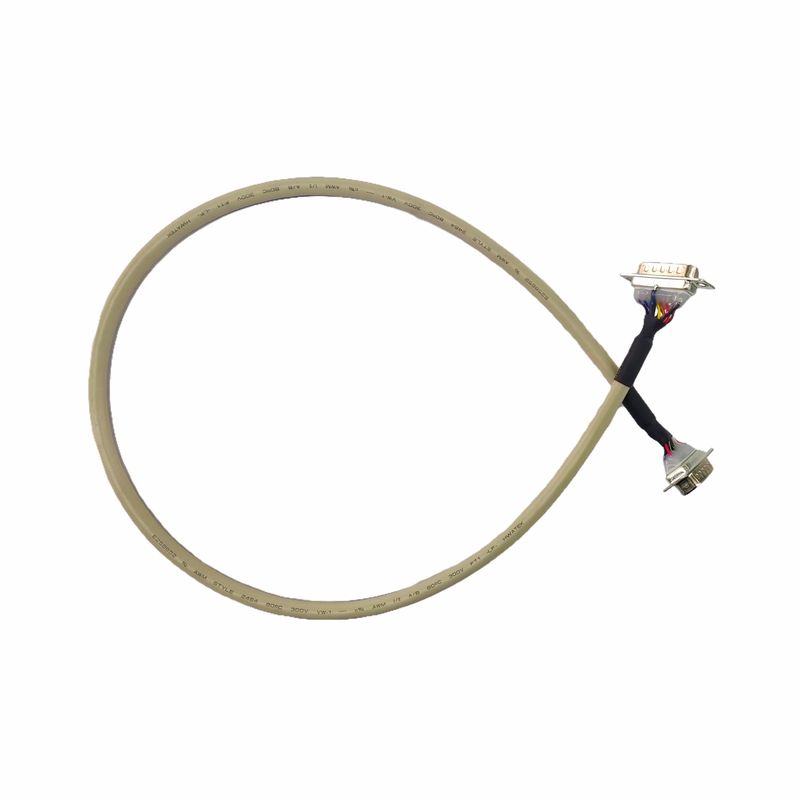

3. Picture of real products

4. Application area

I: Industrial automation: Industrial automation systems usually need to transmit high frequency signals, such as sensor signals, control signals, etc. The use of 15-core industrial wiring harnesses for signal transmission can ensure high-quality signal transmission and resist interference, which is suitable for all aspects of industrial automation, including robotics, automatic control systems, monitoring and measuring equipment, etc.

II: Communication equipment: In the field of communication equipment, such as wireless base station, communication network equipment, etc., it is often necessary to transmit high frequency signals. The single shield design of the 15-core industrial wiring harness can provide reliable signal transmission, which is suitable for the transmission and connection of high-frequency signals, ensuring the stable operation of communication equipment and the accuracy of data transmission.

III: Medical equipment: Certain applications in medical equipment require the transmission of high frequency signals, such as medical imaging equipment, monitoring equipment, etc. By using 15-core industrial wiring harnesses for high-frequency signal transmission, high signal quality and reliability can be ensured to meet the needs of medical devices for precise signal transmission.

5. Feature

I: Single shielding design: the wire harness adopts single shielding structure, with excellent shielding effect. Through the metal foil shielding layer, the influence of external electromagnetic interference on signal transmission can be effectively reduced, and the reliability and stability of signal can be improved.

II: Multi-function core wires: The harness contains 15 core wires, each of which is used for different functions, such as power supply, signal transmission, data communication, etc. These versatile core wires provide flexible configuration options to meet a variety of application requirements.

III: High frequency transmission capability: The harness is designed for high frequency signal transmission and can transmit high frequency signals such as RF signals and high speed data signals. It has low signal attenuation and excellent signal integrity, ensuring high quality signal transmission.
