Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: High flexible wire harness or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
High Frequency Sensor Industrial Wire Harness Custom Braided Shield Outer Diameter 7MM |
Application Area: |
Displacement Sensor, Laser Equipment Extension Cable |
Wire Type: |
Tow Chain Cable UL20276 |
Connector: |
HRS (Hirose) Connector |
Conductor Material: |
Oxygen-free Copper Or Optional |
Insulating Material: |
PVC |
Color: |
White Or Optional |
OD: |
Customize To Demand |
Length: |
1325mm Or Custom |
Conduction Impedance And Insulation Resistance: |
10Ω，5MΩ |
DV High Pressure: |
300V/0.01s |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Product Name: |
High Frequency Sensor Industrial Wire Harness Custom Braided Shield Outer Diameter 7MM |
Application Area: |
Displacement Sensor, Laser Equipment Extension Cable |
Wire Type: |
Tow Chain Cable UL20276 |
Connector: |
HRS (Hirose) Connector |
Conductor Material: |
Oxygen-free Copper Or Optional |
Insulating Material: |
PVC |
Color: |
White Or Optional |
OD: |
Customize To Demand |
Length: |
1325mm Or Custom |
Conduction Impedance And Insulation Resistance: |
10Ω，5MΩ |
DV High Pressure: |
300V/0.01s |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
High frequency sensor industrial wire harness custom braided shield outer diameter 7MM
1. Product description
High frequency sensor industrial wire harness custom braided shield outer diameter 7MM processing technology: dispensing, welding, assembly
molding.Using high quality environmental protection materials, strong insulation performance, wear resistance and corrosion resistance, long
service life; High quality wire core, high temperature resistance, fire retardant, strong wire body is not easy to break.The braided shielding
structure is adopted to effectively suppress the influence of external electromagnetic interference and noise. Braided shielding provides good
shielding effect, reduces signal interference and ensures high quality signal transmission.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
High frequency sensor industrial wire harness custom braided shield outer diameter 7MM |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Displacement sensor, laser equipment extension cable |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

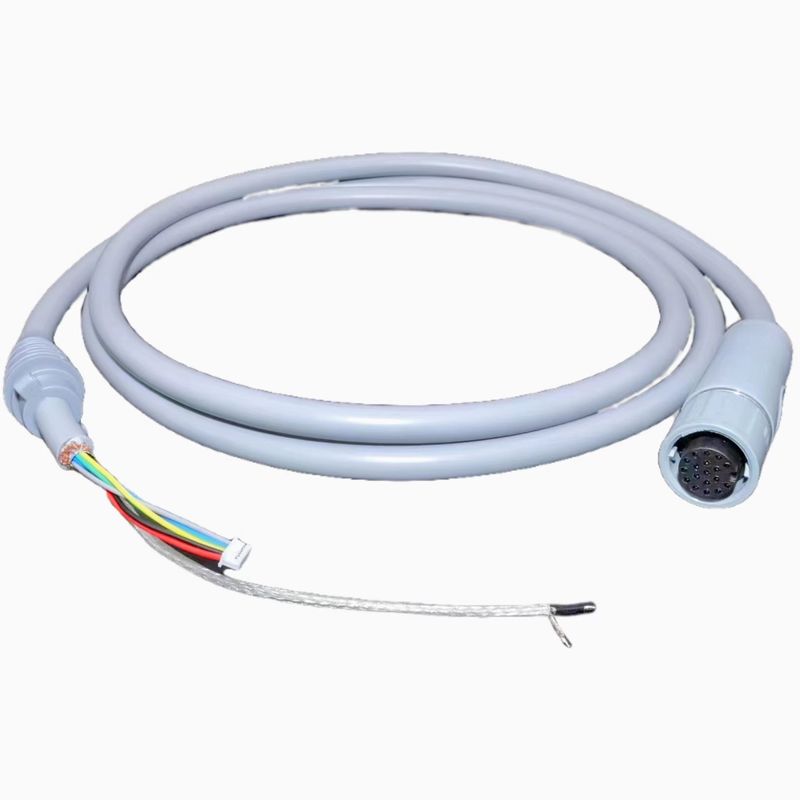

3. Picture of real products
4. Application area
I: Industrial automation: High-frequency sensor industrial wiring harnesses can be used to connect sensors and controllers in industrial automation systems. It can transmit high frequency signals and ensure accurate data acquisition and transmission for monitoring and controlling various process parameters on the production line.
II: Wireless communication equipment: The wiring harness is suitable for connecting high frequency sensors in wireless communication equipment. It can be connected with wireless sensor nodes and base stations for wireless data transmission, signal monitoring and high frequency signal processing in communication systems.
III: Medical equipment: High frequency sensor industrial wiring harness can be used to connect high frequency sensors in medical equipment, such as medical ultrasound equipment, electrocardiogram instrument, etc. It can transmit high frequency signals for medical image acquisition, signal processing and diagnosis.
5. Feature
I: High frequency transmission capability: The harness has excellent high frequency signal transmission capability. It can effectively transmit high frequency signals and ensure accurate data acquisition and transmission, which is suitable for high frequency sensor applications.
II: Braided shielding structure: the wire harness adopts braided shielding structure, which has good electromagnetic shielding performance. Braided shielding can effectively suppress external electromagnetic interference and noise, and ensure the accuracy and reliability of the signal.
III: Anti-interference ability: the braided shielding structure and high-quality materials of the wire harness can effectively resist the influence of external electromagnetic interference and interference sources, and ensure the stability and reliability of signal transmission.
