Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001, UL,ROHS2.0
Model Number: Medical wiring harness assembly or Customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: 1~2$
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: L/C, D/A,Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
300V Insulated Tinned Copper 3M-Ventilator Medical Wiring Harness High Temperature Resistant |
Application Area: |
Medical Equipment Or Equipment (ventilators, Defibrillators, Oxygen Generators, Etc.) |
Connector: |
WE Connector, DB 9P Male Head |
Wire Type: |
UL2651 28AWG Tinned Copper Bar Cable |
Colour: |
Gray |
Length: |
500mm Or Customized |
Rated Voltage: |
300V |
Insulation Resistance: |
≥100MΩ |
MOQ: |
50 Pcs |
OEM,ODM: |
Accept |
Product Name: |
300V Insulated Tinned Copper 3M-Ventilator Medical Wiring Harness High Temperature Resistant |
Application Area: |
Medical Equipment Or Equipment (ventilators, Defibrillators, Oxygen Generators, Etc.) |
Connector: |
WE Connector, DB 9P Male Head |
Wire Type: |
UL2651 28AWG Tinned Copper Bar Cable |
Colour: |
Gray |
Length: |
500mm Or Customized |
Rated Voltage: |
300V |
Insulation Resistance: |
≥100MΩ |
MOQ: |
50 Pcs |
OEM,ODM: |
Accept |
300V Insulated Tinned Copper 3M-Ventilator Medical Wiring Harness High Temperature Resistant
1. Product description
300V insulated Min100MΩ tinned copper waterproof high temperature resistant 3M-ventilator medical wiring harness is a medical wiring harness with 300V insulation grade, minimum 100MΩ insulation resistance, and tin plated copper conductor, with waterproof and high temperature resistance characteristics. The insulation material of the medical harness has high temperature resistance, which can maintain stable insulation performance in high temperature environment. The conductor is made of tinned copper, which has good electrical conductivity and can effectively prevent oxidation. Therefore, it is very suitable for use in the field of medical equipment, especially in ventilators with high requirements for electrical safety, signal transmission reliability and durability. It is highly reliable and safe, and can be used in hospitals, emergency vehicles, medical institutions, as well as home care.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name | 300V insulated Min100MΩ tinned copper waterproof high temperature resistant 3M-ventilator medical wiring harness |
Product certification | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
Product application | Medical equipment or equipment (ventilators, defibrillators, oxygen generators, etc.) |
Length, color | Customized according to customer needs |
Samples | Samples confirmed first before mass production |
Serve | Whole-course specially-assigned follow-up, to provide fast and efficient service |
Test | Continuity test,salt spray test |
MOQ | 50pcs |
Delivery time | 1~2 weeks |
After-sales service | Authentic guaranteed, factory outlets center |

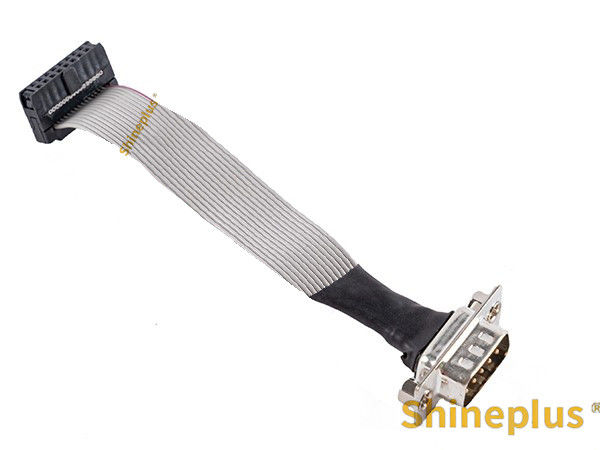

3. Picture of real products
4. Application area
The ventilator medical wiring harness is suitable for cable connection of various ventilators and related medical equipment. The medical wiring harness can reliably connect the power supply, sensors, control modules and other components of the ventilator to ensure the normal operation of the device and the accurate transmission of relevant data.
The medical harness can be used in hospitals, first aid vehicles, medical institutions and home care. It is suitable for medical equipment that needs to be used for a long time, work in high temperature environment, and have strict requirements on insulation performance and waterproof performance.
5. Feature
I: High temperature tolerance: The medical harness adopts high quality insulation materials, with excellent high temperature resistance characteristics, can work stably in the high temperature environment required by medical equipment, to ensure long-term reliable operation.
II: Electrical safety: The medical harness has a voltage rating of 300V, which is suitable for the electrical requirements of medical equipment and can safely and reliably transmit electrical signals and power.
III: Medical grade certification: This medical wire harness material complies with relevant safety and environmental standards for medical equipment, such as RoHS, REACH, etc., ensuring the health and environmental performance of the product.
