Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485 ,ISO9001，ROHS
Model Number: Custom made cable
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Anti-interference And Bending Resistance SDI Module Endoscope Wiring Harness For Image Transmission |
Application Area: |
Applications Such As Endoscopy, Diagnosis And Treatment |
Wire Spec: |
24AWG |
Connector: |
Air Plug Connector、DB15 Male |
Conductor Material: |
Copper |
Insulating Material: |
PVC |
Color: |
Black |
Length: |
500mm |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A1467 |
Product Name: |
Anti-interference And Bending Resistance SDI Module Endoscope Wiring Harness For Image Transmission |
Application Area: |
Applications Such As Endoscopy, Diagnosis And Treatment |
Wire Spec: |
24AWG |
Connector: |
Air Plug Connector、DB15 Male |
Conductor Material: |
Copper |
Insulating Material: |
PVC |
Color: |
Black |
Length: |
500mm |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A1467 |
Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission
1. Product description
Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission adopts shielding design, in which wire and signal wire are wrapped in metal shielding layer, which can effectively block the influence of external electromagnetic interference and reduce signal interference and distortion.
Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission used to transmit image signals capture from the endoscope camera; Power the light source in the endoscope system; Transmission control signals; Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission transmits video signals from the endoscopic camera to a display, video recording device, or other image processing equipment for real-time observation, analysis, and recording by the physician or operator.
Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission use electromagnetic compatibility (EMC) test, shielding efficiency test, signal integrity test, etc.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
1.1 Application area
is inserted through a blood vessel into a patient's heart for the treatment and diagnosis of heart conditions. The Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission is used to transmit images taken by the catheter camera to help the doctor accurately position and manipulate.
1.2 Features
I:HD video transmission
II:Low latency
III:Strong anti-interference capability
IV:Flexibility and reliability
|
Product Name |
Anti-interference and bending resistance SDI module endoscope wiring harness for image transmission |
|
Harness material |
Pass ISO13485,ISO9001 and ROHS certification |
|
Product application |
Applications such as endoscopy, diagnosis and treatment |
|
Length, color |
Black or optional,500mm or customizable |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Electromagnetic compatibility (EMC) test, shielding efficiency test, signal integrity test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

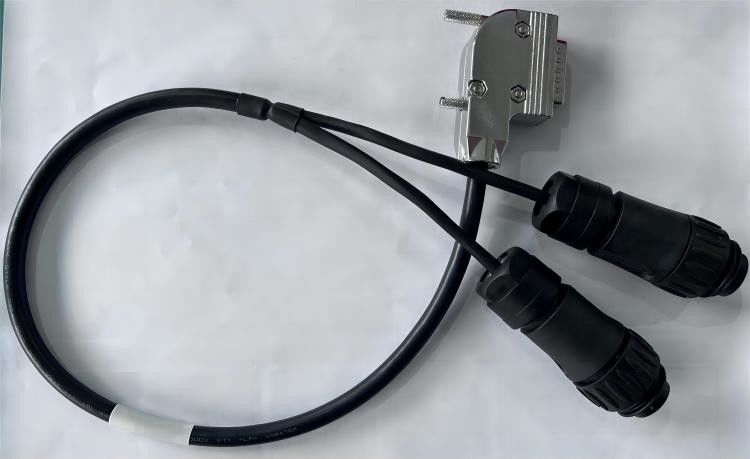

2.1 Picture of real products
