Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: High flexible towing cable
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
300V Insulated Small Diameter Fan Motor Automotive Wiring Harness, Amphenol Connector |
Application Area: |
New Energy Vehicle Fan |
Connector: |
Amphenol, Terminal |
Processing Technic: |
Riveting, Welding, Injection Molding |
Wire Type: |
UL3321 |
Wire Harness Outer Cover: |
PVC Sockets |
Color: |
Black |
Length: |
500mm |
Rated Voltage: |
300V |
Impedance On Conduction: |
≤3Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Product Name: |
300V Insulated Small Diameter Fan Motor Automotive Wiring Harness, Amphenol Connector |
Application Area: |
New Energy Vehicle Fan |
Connector: |
Amphenol, Terminal |
Processing Technic: |
Riveting, Welding, Injection Molding |
Wire Type: |
UL3321 |
Wire Harness Outer Cover: |
PVC Sockets |
Color: |
Black |
Length: |
500mm |
Rated Voltage: |
300V |
Impedance On Conduction: |
≤3Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
300V insulated small diameter fan motor automotive wiring harness, Amphenol connector
1. Product description
300V insulated small diameter fan motor automotive wiring harness, Amphenol connector small diameter design, with small outside diameter and flexibility, can be easily installed in a small space, to meet the requirements of automotive fan motor system for compact layout. With an insulation grade of 300V, the harness can safely withstand voltages up to 300V and is suitable for power supply and signal transmission in automotive fan motor systems. With good electrical insulation performance, it can effectively isolate and protect cables and connectors to prevent electrical interference and short circuit problems.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
300V insulated small diameter fan motor automotive wiring harness, Amphenol connector |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
New energy vehicle fan |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

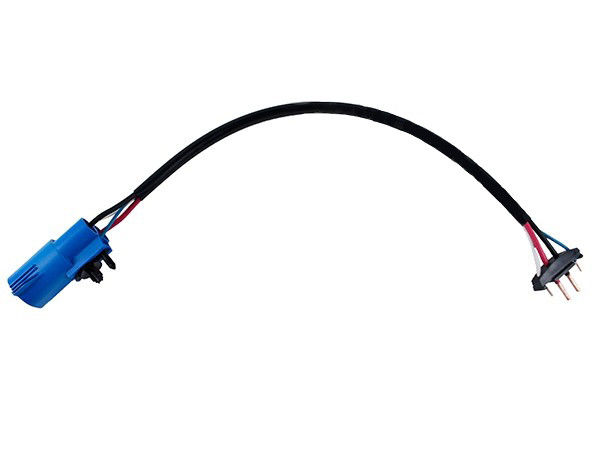

3. Picture of real products
4. Application area
I: Automotive fan systems: This automotive wiring harness is mainly used in automotive fan motor systems, including engine cooling fans, internal ventilation fans, and auxiliary radiator fans. It is used to connect the circuit between the fan motor, the power supply and the controller to achieve power supply and signal transmission.
II: Heat dissipation system: This automotive wiring harness can also be applied to other heat dissipation systems of automobiles, such as transmission cooler fans, hydraulic oil cooler fans, etc. These systems require fan motors for heat dissipation, and wire harnesses are used to connect and control the operation of the fan motors.
III: Auxiliary equipment: This automotive wiring harness can also be applied to auxiliary equipment of automobiles, such as auxiliary generator fans, air conditioning compressor fans, etc. These devices typically require power supply and signal transmission, and wire harnesses are used to connect circuits between these devices and the vehicle's electrical system.
5. Feature
I: High voltage insulation capability: The insulation level of the harness is 300V, which can safely withstand voltage up to 300V. It is suitable for power supply and signal transmission in automotive fan motor system.
II: Flexible wiring and installation: Flexible automotive wiring harness design, easy wiring and installation, can meet the needs of different car models and fan motor systems.
III: High temperature resistance: The automotive wiring harness is made of materials with strong high temperature resistance, which can maintain stable performance under high temperature environment and adapt to the high temperature environment inside the automobile engine compartment.
