Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: EV15E 16mm² or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
EV15E Automotive Wire Harness Red 550mm UL94-V0 Heat Shrinkable Tube |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
EV15E 16mm² |
Terminal: |
Double-hole Wiring Terminal M5(∅5.7) Hole Distance 30mm |
OD: |
8.5mm |
Color: |
Red |
Length: |
550mm |
Voltage And Current: |
600V,30A |
Waterproof Label: |
PET 80*20mm |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1923 |
Product Name: |
EV15E Automotive Wire Harness Red 550mm UL94-V0 Heat Shrinkable Tube |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
EV15E 16mm² |
Terminal: |
Double-hole Wiring Terminal M5(∅5.7) Hole Distance 30mm |
OD: |
8.5mm |
Color: |
Red |
Length: |
550mm |
Voltage And Current: |
600V,30A |
Waterproof Label: |
PET 80*20mm |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1923 |
EV15E automotive wire harness red 550mm UL94-V0 heat shrinkable tube
1. Product description
EV15E automotive wire harness red 550mm UL94-V0 heat shrinkable tube terminal customers customize on demand.The heat shrinkable tube should meet UL94-V0. Waterproof grade: IP68.Products have strong flexibility, acid and alkali resistance, oil resistance, moisture resistance,mildew resistance, flame retardant, wear resistance, corrosion resistance, oxidation resistance, water resistance, dust resistance, UV resistance and other characteristics.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
Product Name |
EV15E automotive wire harness red 550mm UL94-V0 heat shrinkable tube |
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
Product application |
Assembly of internal equipment of various types of vehicles |
Length, color |
Customized according to customer needs |
Samples |
Samples confirmed first before mass production |
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Flexing test |
MOQ |
Negotiable |
After-sales service |
Authentic guaranteed, factory outlets center |

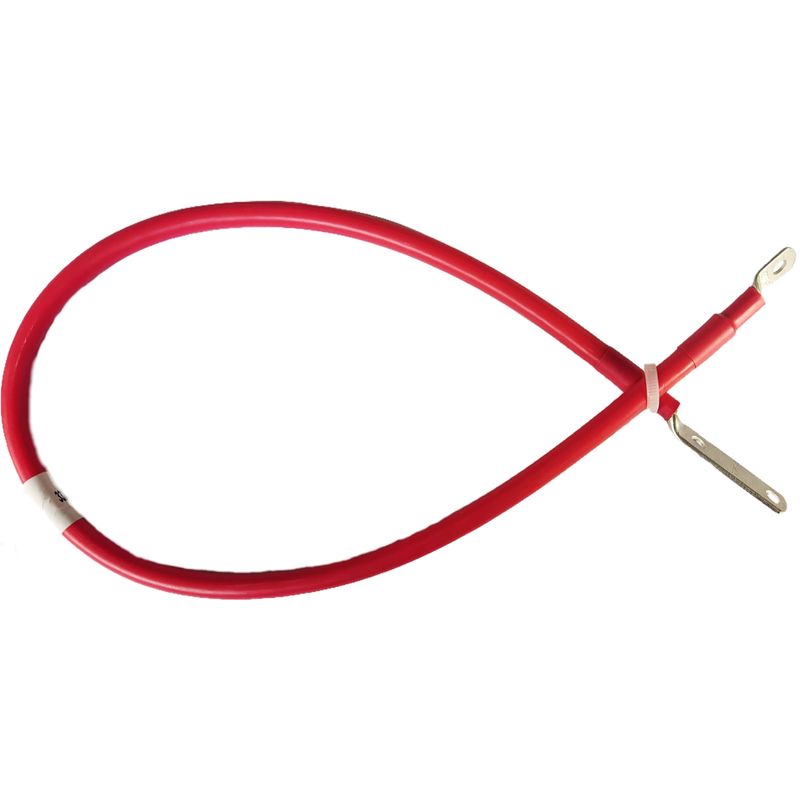

3. Picture of real products
4. Application area
I: Electric vehicles: As one of the main power systems of electric vehicles, the EV15E harness can be used for the connection and transmission of key components such as battery packs, electric motors, charging systems, and power converters. Heat shrinkable tubes provide insulation and protection, ensuring safety and reliability for high current and high power transmission.
II: Interior lighting systems: In automotive interior lighting systems, the EV15E harness can be used to connect interior lamps, dashboard lighting, door lights, and other lighting devices. Heat shrinkable tubing provides insulation and protection against damage to wires from vibration, moisture, and other environmental factors.
III: Instrument panel and control module: The EV15E wiring harness can used to connect various instruments and control modules on the instrument panel of a car, such as speedometer, oil pressure gauge, thermometer, sound system, air conditioning system, etc. It is capable of transmitting various signals and data and provides protection against interference and damage.
5. Feature
I: UL94-V0 Flame retardant rating: UL94 is the flame retardant rating test standard for materials by Underwriters Laboratories. V0 is the highest level of UL94 flame retardant rating, indicating that the harness has the ability to self-extinguishing and prevent the spread of flame. The UL94-V0 harness effectively protects the harness and reduces fire risk in the event of a fire.
II: Insulation performance: The EV15E 16MM² harness provides good insulation performance, which can effectively isolate the wires in the wiring harness, prevent current leakage and short circuit, and ensure the safe operation of the electrical system.
III: Easy installation: The EV15E 16MM² harness with heat shrinkable pipe has heat shrinkable property, it can be shrunk by heating, tightly wrap the wire harness, easy and quick installation.
