Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: EV15E 6mm² or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
EV15E Automotive Wiring Harness PET Waterproofing OD 5.5mm |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
EV15E 6mm² |
Conductor Material: |
Oxygen Free Copper |
Heat Shrink Tubing: |
∅7.0 Black |
Terminal: |
DBNB8-14/90° And Copper Terminal, KS10-12, ID 4.5, L=22, Tin Plated |
OD: |
5.5mm |
Color: |
Red |
Length: |
260mm |
Voltage And Current: |
600V,30A |
Waterproof Label: |
PET 80*20mm |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1624 |
Product Name: |
EV15E Automotive Wiring Harness PET Waterproofing OD 5.5mm |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
EV15E 6mm² |
Conductor Material: |
Oxygen Free Copper |
Heat Shrink Tubing: |
∅7.0 Black |
Terminal: |
DBNB8-14/90° And Copper Terminal, KS10-12, ID 4.5, L=22, Tin Plated |
OD: |
5.5mm |
Color: |
Red |
Length: |
260mm |
Voltage And Current: |
600V,30A |
Waterproof Label: |
PET 80*20mm |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1624 |
EV15E automotive wiring harness PET waterproofing OD 5.5mm
1. Product description
EV15E automotive wiring harness PET waterproofing OD 5.5mm the processing technology: terminal riveting, assembly process.The heat shrinkable tube should meet UL94-V0. Waterproof grade: IP68.All the materials used meet the requirements of environmental protection.The waterproof 5.5mm outer diameter PET protective layer of the harness effectively prevents moisture and moisture intrusion and protects the wires inside the harness from corrosion and short circuit.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
EV15E automotive wiring harness PET waterproofing OD 5.5mm |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Assembly of internal equipment of various types of vehicles |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 500N,Flexing test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

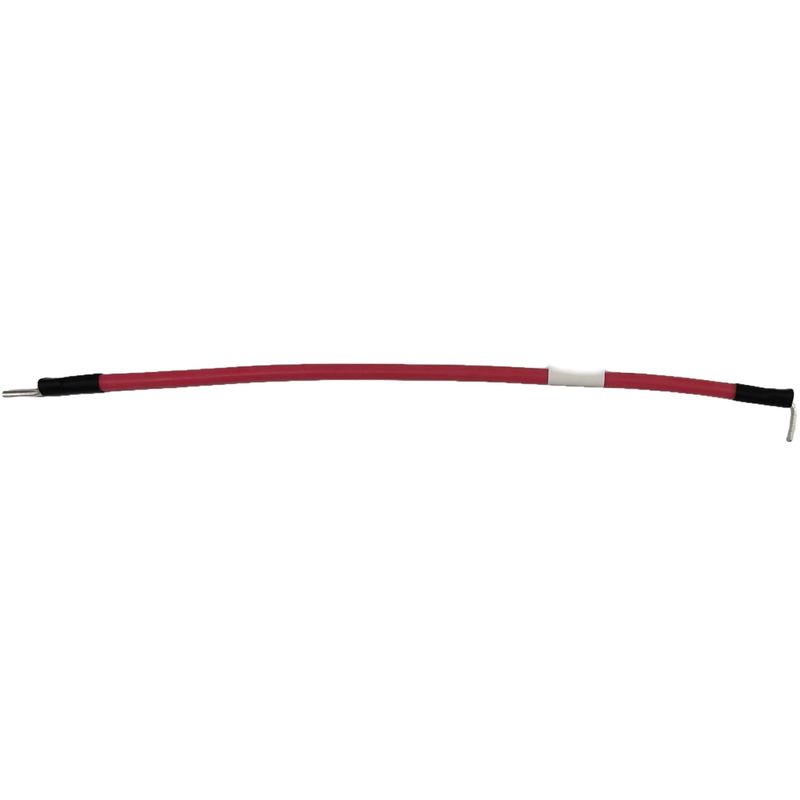

3. Picture of real products
4. Application area
I: Car engine compartment: EV15E automotive wiring harness can play an important role in the car engine compartment. The engine compartment is an environment of high temperature, high humidity and easy to be splashing. The waterproof PET protective layer of the wiring harness with an outer diameter of 5.5mm can effectively prevent the intrusion of moisture and moisture, and protect the wires inside the wiring harness from corrosion and short circuit.
II: Body electrical system: EV15E automotive wiring harness is also suitable for body electrical system, such as doors, Windows, lights and other parts of the electrical connection. The 5.5mm waterproof outer diameter PET protective layer of the harness provides waterproof performance, protects the wires inside the harness from rain and humidity, and ensures the normal operation of the electrical system.
III: Internal electrical system: The EV15E automotive wiring harness can also be applied to the internal electrical system of the car, such as instrument panel, sound system, air conditioning system, etc. The waterproof PET protective layer of the wiring harness with an outer diameter of 5.5mm can prevent liquid from infiltrating into the wiring harness and protect the normal operation of electrical equipment.
5. Feature
I: High conductivity: The automotive wiring harness uses high quality copper conductors with a resistance as low as 0.005Ω/m to ensure excellent electrical conductivity.
II: High temperature resistance: The outer layer of the automotive wire harness is made of PET material, which can withstand continuous working temperature up to 125°C, and is suitable for the environment near high-heat components such as motors and batteries.
III: Waterproof and dustproof: the outer layer of PET material with outer diameter of 5.5mm has IP68 waterproof and dustproof performance, which can reliably resist harsh on-board environment. Even after long-term immersion in water, it can ensure the safe operation of the harness.
