Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: 4P*24AWG or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
4P*24AWG OD:5.5mm² 8P8C Crystal Head M16 Single Hole Waterproof Connector Black 830mm Automotive Wiring Harness |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
4P*24AWG Or Customized |
Conductor Material: |
Oxygen Free Copper, Tinned Copper Or Optional |
Crystal Head: |
8P8C Gold Plated (KB Round Hole) Without Iron Shell Or Optional |
Water Joint: |
M16 Single Hole Or Optional |
Splice: |
RJ45 Male Head Without Iron Shell Round Hole Small Line Gear 0.3mm |
OD: |
5.5mm Or Customize To Demand |
Color: |
Black Or Optional |
Length: |
830mm Or Customized |
Heat Shrink Tubing: |
∅6.0 Black Or Optional |
Voltage And Current: |
300V,30A |
Insulation Strength, Insulation Resistance, Contact Resistance: |
≥3000V，≥50MΩ，≤1Ω |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1891 |
Product Name: |
4P*24AWG OD:5.5mm² 8P8C Crystal Head M16 Single Hole Waterproof Connector Black 830mm Automotive Wiring Harness |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
4P*24AWG Or Customized |
Conductor Material: |
Oxygen Free Copper, Tinned Copper Or Optional |
Crystal Head: |
8P8C Gold Plated (KB Round Hole) Without Iron Shell Or Optional |
Water Joint: |
M16 Single Hole Or Optional |
Splice: |
RJ45 Male Head Without Iron Shell Round Hole Small Line Gear 0.3mm |
OD: |
5.5mm Or Customize To Demand |
Color: |
Black Or Optional |
Length: |
830mm Or Customized |
Heat Shrink Tubing: |
∅6.0 Black Or Optional |
Voltage And Current: |
300V,30A |
Insulation Strength, Insulation Resistance, Contact Resistance: |
≥3000V，≥50MΩ，≤1Ω |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1891 |

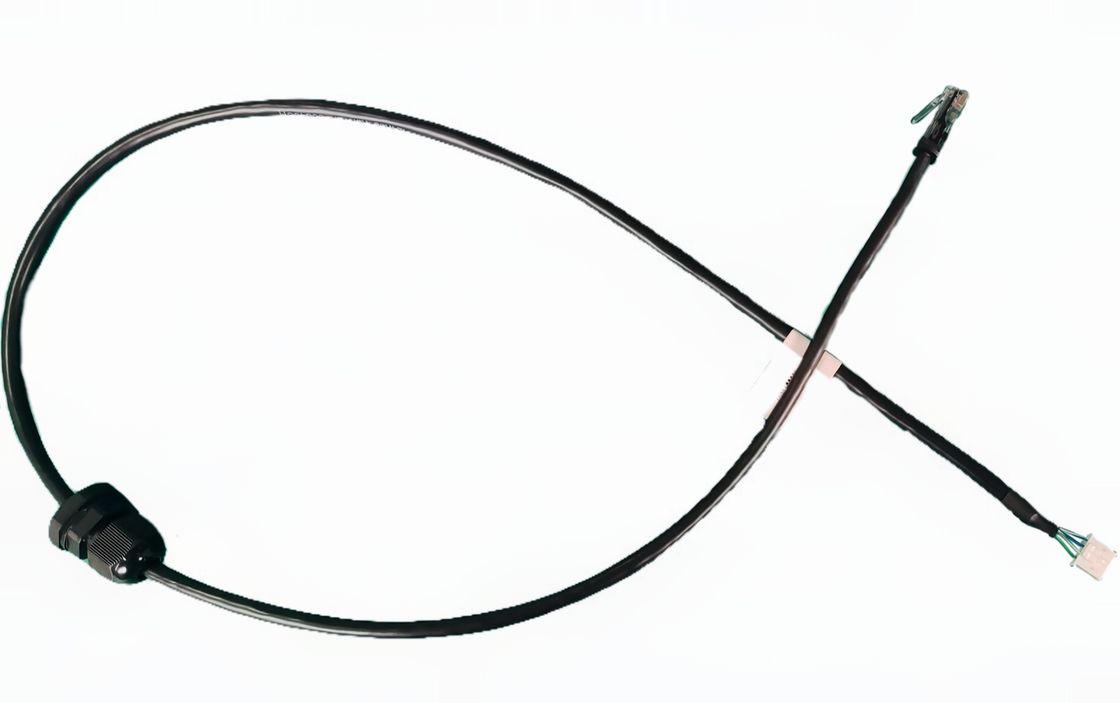

4P*24AWG OD:5.5mm² 8P8C crystal head M16 single hole waterproof connector black 830mm automotive wiring harness
1. Product description
CAT5E 4P*24AWG OD:5.5mm² 8P8C crystal head M16 single hole waterproof connector black 830mm automotive wiring harness terminal customers customize on demand. Plug and play, flexible and firm, longer life.The wire harness and terminal are firmly fixed,All terminals can withstand more than 50N tension. The terminal should not fall off in the heat shrinkable tube sheath. The heat shrinkable tube should meet UL94-V0. Conduction test 100%.Waterproof grade: IP68.All the materials used meet the requirements of environmental protection.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
4P*24AWG OD:5.5mm² 8P8C crystal head M16 single hole waterproof connector black 830mm automotive wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Assembly of internal equipment of various types of vehicles |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Conduction test 100% |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |
3. Picture of real products
4. Application area
I: On-board network: Wiring harnesses can be used to connect various devices and modules in on-board network systems, such as on-board entertainment systems, navigation systems, and communication systems. Through 8P8C crystal head connector, data transmission and communication functions can be realized.
II: Vehicle monitoring system: The wire harness can be used to connect cameras, sensors and other devices in the vehicle monitoring system to achieve image and data transmission. Waterproof connectors provide reliable connection and protection under harsh environmental conditions.
III: In-car electronic device connection: The harness can be used to connect various electronic devices in the car, such as sound system, instrument panel display, air conditioning control panel, etc. Through the connection of wiring harnesses, power supply, signal transmission and control functions are realized.
5. Feature
I: 8P8C crystal head: 8P8C crystal head connector is used at the end of the harness. 8P8C means that there are 8 positions and 8 metal contacts on the connector, which is suitable for common 8-core (8-wire) communication and data transmission. Crystal head connectors are commonly used for Internet and telephone cable connections.
II: Outer diameter: The outer diameter of the harness is 5.5mm². The outer diameter dimension reflects the thickness and compactness of the harness, making it suitable for installation in a space-constrained automotive environment.
III: Wire specification: The wire specification used in the harness is 4P*24AWG. 4P means that there are four wires in the harness, and 24AWG means that each wire has a diameter of 24 US gauge. This specification of wire is suitable for general automotive electronic communication and data transmission applications.
