Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: UL1332 AWG22 or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
UL1332 AWG22 Automotive Wiring Harness White 420mm Insulation |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
UL1332 AWG22 |
Conductor Material: |
Oxygen Free Copper |
Wax-duct: |
White |
OD: |
1.3mm |
Color: |
White Or Optional |
Length: |
420mm |
Voltage And Current: |
300V,30A |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1888 |
Product Name: |
UL1332 AWG22 Automotive Wiring Harness White 420mm Insulation |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
UL1332 AWG22 |
Conductor Material: |
Oxygen Free Copper |
Wax-duct: |
White |
OD: |
1.3mm |
Color: |
White Or Optional |
Length: |
420mm |
Voltage And Current: |
300V,30A |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1888 |
UL1332 AWG22 automotive wiring harness white 420mm insulation
1. Product description
UL1332 AWG22 automotive wiring harness white 420mm insulation all terminals can withstand more than 50N tension. The terminal should not
fall off in the heat shrinkable tube sheath. The heat shrinkable tube should meet UL94-V0. Conduction test 100%.Waterproof grade: IP68.All the
materials used meet the requirements of environmental protection.The harness has insulation function, which can effectively isolate and protect
the wire, prevent current leakage and short circuit and other problems. High quality insulation materials are usually used to ensure the safety and
reliability of the electrical system.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
UL1332 AWG22 automotive wiring harness white 420mm insulation |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Assembly of internal equipment of various types of vehicles |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Conduction test 100% |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

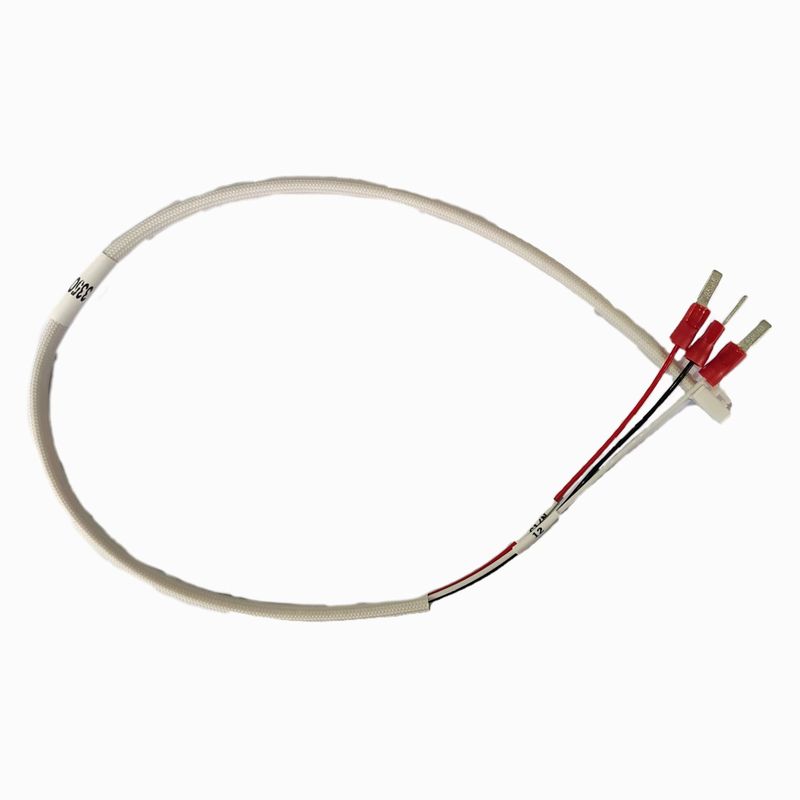

3. Picture of real products
4. Application area
I: Automotive electrical systems: This automotive wire harness is used to connect and wire various electrical devices and components in automotive electrical systems, such as engine control units (ECUs), sensors, lighting systems, air conditioning systems, and others. It provides a channel for power and signal transmission, ensuring normal communication and coordinated work between these devices.
II: Electric vehicles: With the popularity of electric vehicles, UL1332 AWG22 white automotive wiring harnesses play an important role in the electrical system of electric vehicles. It connects key components such as electric motors, battery packs, and charging systems to ensure the safety and reliability of power transmission.
III: Body electronic system: Body electronic system in modern cars includes central control unit, instrument panel, on-board entertainment system, etc. The UL1332 AWG22 White automotive wiring harness is used to connect the various components in these systems, enabling the transmission of data and signals to ensure the normal operation of the body electronic system.
5. Feature
I: High temperature resistance: The automotive wire harness material has high temperature resistance, which can work normally in high temperature environment such as automobile engine cabin.
II: Reliability and safety: By using UL1332 AWG22 white automotive wiring harnesses, the reliability and safety of automotive electrical systems can be ensured, providing stable power and signal transmission.
III: High quality insulation: The automotive wire harness uses high quality insulation materials to effectively isolate and protect the wires from current leakage and short circuits.
