Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: EV10mm² or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
DC Power EV10mm² Red 750mm PA Bellow Flame Retardant Automotive Wiring Harness |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
EV10mm² Or Customized |
Conductor Material: |
Oxygen Free Copper, Tinned Copper Or Optional |
Corrugated Pipe: |
PA |
OD: |
8.6mm² Or Customize To Demand |
Color: |
Red Or Optional |
Length: |
750mm Or Customized |
Voltage And Current: |
1500V,30A |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1195 |
Product Name: |
DC Power EV10mm² Red 750mm PA Bellow Flame Retardant Automotive Wiring Harness |
Application Area: |
Assembly Of Internal Equipment Of Various Types Of Vehicles |
Wire Type: |
EV10mm² Or Customized |
Conductor Material: |
Oxygen Free Copper, Tinned Copper Or Optional |
Corrugated Pipe: |
PA |
OD: |
8.6mm² Or Customize To Demand |
Color: |
Red Or Optional |
Length: |
750mm Or Customized |
Voltage And Current: |
1500V,30A |
Waterproofing Grade: |
IP68 |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL216A1195 |
DC power EV10mm² red 750mmPA bellow flame retardant automotive wiring harness
1. Product description
DC power EV10mm² red 750mm PA bellow flame retardant automotive wiring harness the pressure of wire and terminal is MIN 1500N.Connector customers customize on demand. Plug and play, flexible and firm, longer life.Waterproof grade: IP68.All the materials used meet the requirements of environmental protection.The outer skin of the wire harness is made of PA (polyamide) material, which has flame retardant performance. This means that in the event of flame or high temperature, the harness can inhibit flame spread and improve safety.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
DC power EV10mm² red 750mmPA bellow flame retardant automotive wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Assembly of internal equipment of various types of vehicles |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1500N,Flexing test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

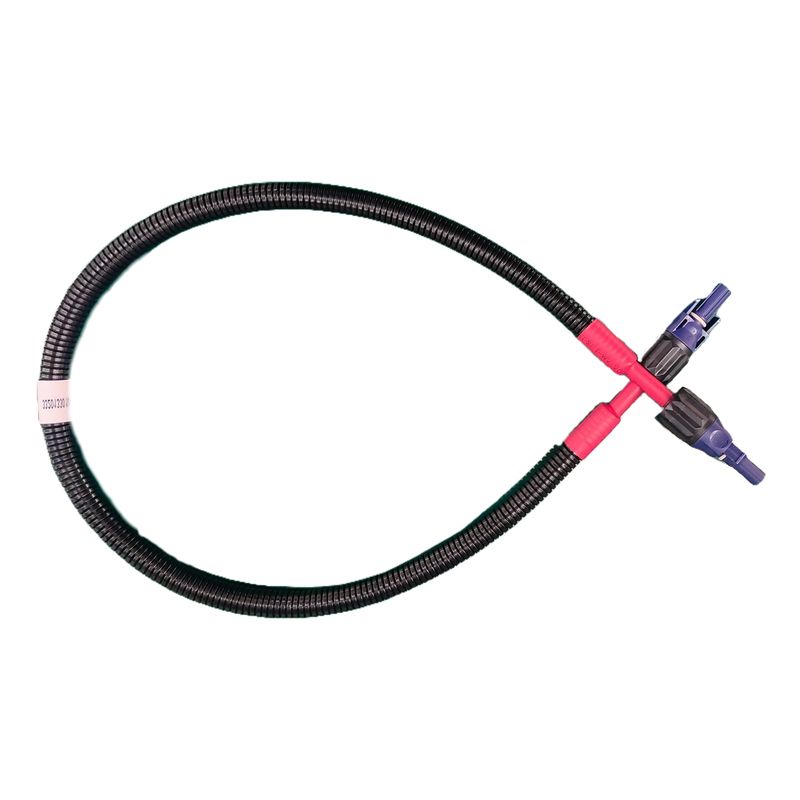

3. Picture of real products
4. Application area
I: Battery system: Wire harnesses can be used to connect the vehicle battery to the battery management system to transfer electrical energy from the battery to various electronic devices and systems in the vehicle.
II: Engine compartment: Wiring harnesses can be used for power transmission in the engine compartment of an automobile, including the engine control unit (ECU), ignition system, fuel injection system, etc.
III: In-car electronics: Wiring harnesses can be used to connect various electronic devices in the car, such as instrument panels, sound systems, navigation systems, air conditioning systems, etc.
5. Feature
I: Flame retardant property: The outer skin of the wire harness is made of PA (polyamide) material, which has flame retardant property. This means that the harness is able to suppress flame spread when exposed to flame or high temperature, improving safety.
II: High temperature resistance: The wire harness has good high temperature resistance, which can operate normally in high temperature environment such as automobile engine cabin and maintain stable power transmission.
III: Vibration resistance: The design of the harness takes into account the vibration and impact under the working conditions of the vehicle, and has good vibration resistance and can maintain the reliability of the connection.
