Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,RoHS(2011/65/EU)
Model Number: EV25mm² or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Red 25mm² EV 15F Connect Outer Coverfiberglass Pipe Waterproof Automotive Wiring Harness |
Application Area: |
All Types Of Vehicles (including New Energy Vehicles) |
Wire Type: |
EV25mm² Or Customized |
Conductor Material: |
Oxygen Free Copper, Tinned Copper Or Optional |
Transducer: |
Optional |
Insulating Material: |
PVC |
OD: |
Customize To Demand |
Color: |
Orange Or Optional |
Length: |
450mm Or Customized |
Voltage And Current: |
1500V,30A |
OEM,ODM: |
Accept |
Code: |
FDL216A049 |
Product Name: |
Red 25mm² EV 15F Connect Outer Coverfiberglass Pipe Waterproof Automotive Wiring Harness |
Application Area: |
All Types Of Vehicles (including New Energy Vehicles) |
Wire Type: |
EV25mm² Or Customized |
Conductor Material: |
Oxygen Free Copper, Tinned Copper Or Optional |
Transducer: |
Optional |
Insulating Material: |
PVC |
OD: |
Customize To Demand |
Color: |
Orange Or Optional |
Length: |
450mm Or Customized |
Voltage And Current: |
1500V,30A |
OEM,ODM: |
Accept |
Code: |
FDL216A049 |
Red 25mm² EV 15F connect outer coverfiberglass pipe waterproof automotive wiring harness
1. Product description
Red 25mm² EV 15F connect outer coverfiberglass pipe waterproof automotive wiring harness high current harness is used to prevent electromagnetic interference.The use of oxygen free copper conductor works like a high energy rate,and molded industrial wiring harness, plug and play, flexible and strong, longer life.The harness uses 25mm² wires with a large wire cross-sectional area, which is suitable for high power transmission scenarios, such as electric systems of electric vehicles (evs). The outer insulation material of the harness is glass fiber tube, which has waterproof performance and can protect the harness from the influence of humid environment.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Red 25mm² EV 15F connect outer coverfiberglass pipe waterproof automotive wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,ULand RoHS(2011/65/EU) certification |
|
Product application |
All types of vehicles (including new energy vehicles) |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N,Flexing test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

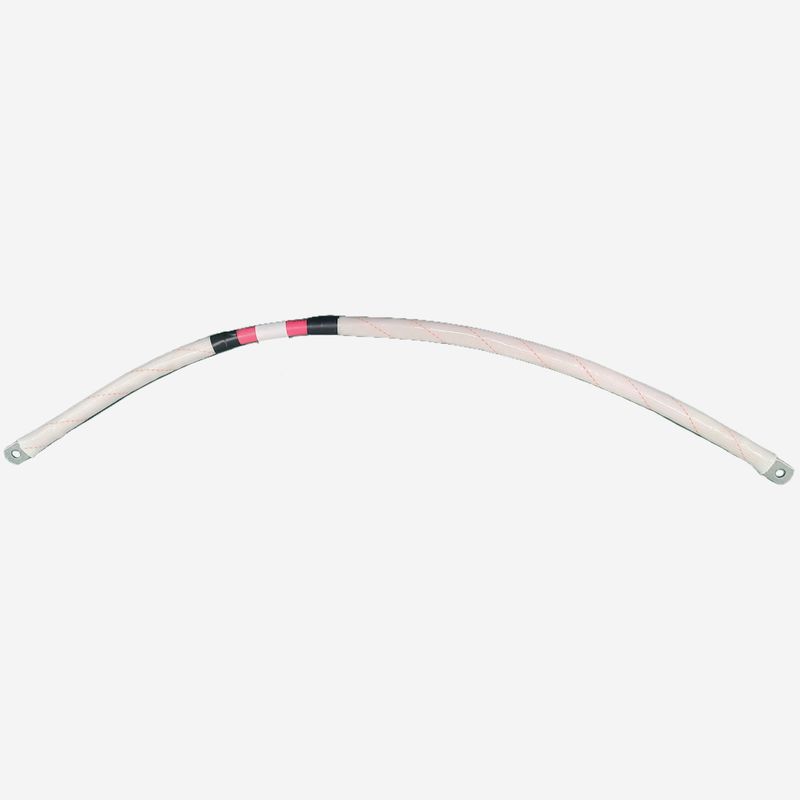

3. Picture of real products
4. Application area
I: Electric vehicle (EV) electric system: The automotive wiring harness can be used to connect electric systems of electric vehicles, including electric drive motors, inverters, battery management systems, and power control units, among others. It transmits high-power power and control signals to ensure the normal operation and performance of electric vehicles.
II: Battery management system: The automotive wiring harness can be used to connect the battery management system of electric vehicles, including battery control unit, battery module and battery charging system, etc. It transmits power and signals that are used to monitor, control, and protect the battery status and charging and discharging process of electric vehicles.
III: Charging system: The automotive wiring harness can be used to connect the charging system of the electric vehicle, including charging interface, charging control unit and charging pile, etc. It transmits power and control signals for safe and efficient charging operations of electric vehicles.
5. Feature
I: High power transmission capacity: The automotive wiring harness adopts 25mm² wire cross-sectional area, which has a large current carrying capacity and is suitable for high power transmission scenarios, such as electric system of electric vehicles.
II: Waterproof performance: The outer layer of the automotive wiring harness uses glass fiber tube as waterproof protection, which can effectively prevent the influence of moisture and humid environment on the harness, and provide reliable waterproof performance.
III: High temperature resistance: The material and design of the automotive wiring harness make it have good high temperature resistance, can work in high temperature environment, adapt to the application of high temperature area such as automobile engine cabin.
