Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: UL2464,10AWG
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: 1~2$
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
UL2464 10AWG Automotive Wiring Harness Black Outer 620mm Energy Storage Communication |
Application Area: |
Two-wheeled Scooters, Balance Bikes, Harrow Bikes, And So On |
Wire Type: |
UL2464,10AWG |
Conductor Material: |
Oxygen Free Copper Or Optional |
Connector: |
Optional |
Insulating Material: |
PVC |
OD: |
5.5mm |
Color: |
Black |
Length: |
620mm |
Voltage And Current: |
600V,30A |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Product Name: |
UL2464 10AWG Automotive Wiring Harness Black Outer 620mm Energy Storage Communication |
Application Area: |
Two-wheeled Scooters, Balance Bikes, Harrow Bikes, And So On |
Wire Type: |
UL2464,10AWG |
Conductor Material: |
Oxygen Free Copper Or Optional |
Connector: |
Optional |
Insulating Material: |
PVC |
OD: |
5.5mm |
Color: |
Black |
Length: |
620mm |
Voltage And Current: |
600V,30A |
Packing: |
Cartons |
OEM,ODM: |
Accept |
UL2464 10AWG automotive wiring harness black outer 620mm energy storage communication
1. Product description
UL2464 10AWG automotive wiring harness black outer 620mm energy storage communication multiple insulated wires can effectively shield external interference signals and ensure the stability of data transmission. and the materials used are in line with the requirement of environmental protection.Plug and play, flexible and firm, longer life.The outer layer of the automotive wiring harness is made of black insulation material,generally polyvinyl chloride (PVC) or cross-linked polyolefin (XLPE). These materials have good insulating properties and are able to prevent short circuits and electrical interference between wires.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
UL2464 10AWG automotive wiring harness black outer 620mm energy storage communication |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
Two-wheeled scooters, balance bikes, Harrow bikes, and so on |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N,Flexing test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

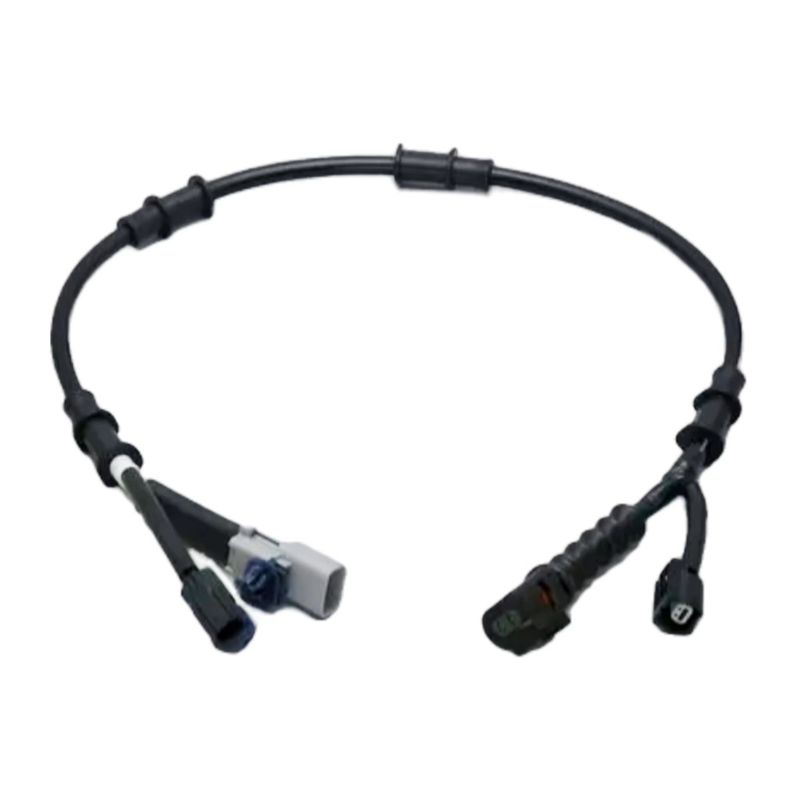

3. Picture of real products
4. Application area
I: Engine Management System: UL2464 10AWG automotive wiring harness can be used to connect engine control units (ECUs), ignition systems, fuel injection systems and sensors. It transmits critical power and signals that are used to monitor and control the working condition and performance of the engine.
II: Body control system: The automotive wiring harness can be used to connect the body control module, door control module, central locking system and window control system, etc. It transmits power and signals that are used to control body functions and perform body related operations.
III: Battery management system: The automotive wiring harness can be used to connect the battery management system, including battery control module, charging system and power distribution module, etc. It transmits power and signals that are used to monitor and control the state of the vehicle's battery and the charging process.
5. Feature
I: High current transmission capacity: The 10AWG automotive wiring harness has a large diameter and can carry a high current load. This makes the UL2464 10AWG wiring harness suitable for automotive applications that require high power transmission, such as engine management systems and battery management systems.
II: Reliable mechanical strength: The outer layer of the automotive wiring harness is made of black insulation material to provide good mechanical protection and durability. This makes the harness resistant to vibrations, shocks and environmental factors, ensuring long-term stable operation.
III: High temperature and heat resistance: The UL2464 10AWG automotive wiring harness generally has good high temperature resistance and is able to operate in high temperature environments. This is very important for applications in high temperature areas such as the engine compartment of automobiles.
