Automotive Wiring Harness For ECU And Instrument Switch Control With ISO Certification

High temperature resistance, multi-function integration ECU instrument switch automotive wiring harness

1. Product description

  High temperature resistance, multi-function integration ECU instrument switch automotive wiring harness used to connect the ECU of the vehicle with switches on the instrument panel for the control of vehicle functions. Switches can include start button, light switch, wiper switch, air conditioning control switch, etc. Through the signals transmitted by the wire harness, the ECU can control the corresponding vehicle functions according to the operation instructions of the driver.The wiring harness complies with the safety standards and specifications of the automotive industry, such as ISO 6722, SAE J1939, etc. It is designed and verified by engineers to ensure that it meets industry standards and meets electrical characteristics, physical parameters, and safety requirements.

2. Product information

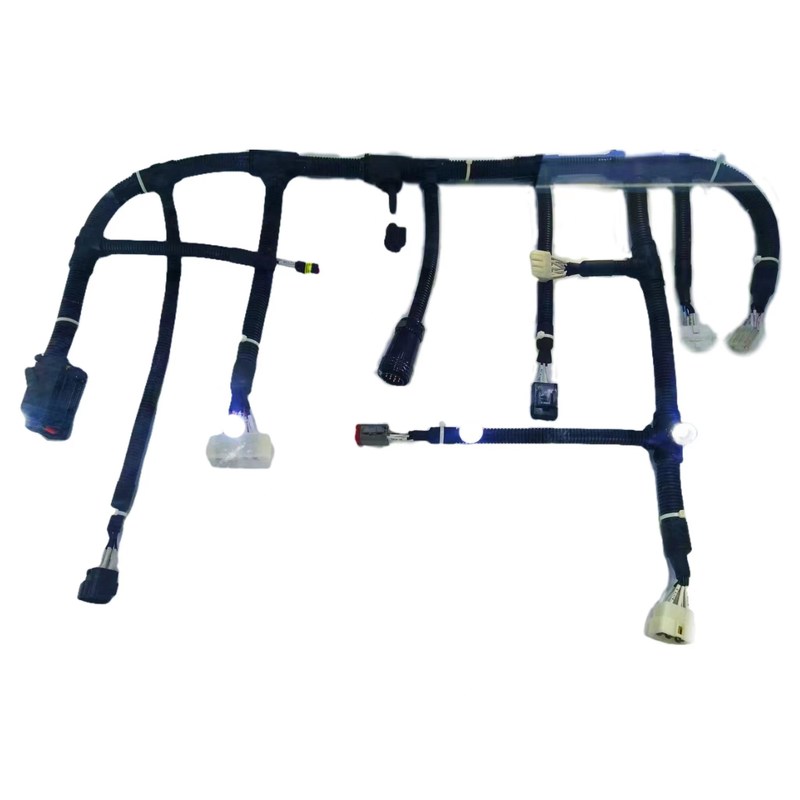

3. Picture of real products

4. Application area

I: Instrument panel control: The automotive wiring harness connects the ECU of the vehicle and switches, instruments and indicators on the instrument panel to control the functions of the instrument panel. It transmits power and signals, transmits the control instructions of the ECU to the corresponding switches and indicators, as well as transmits the feedback information of the instrument instrument back to the ECU.

II: Fault diagnosis: The automotive wiring harness also carries the signal transmission of the vehicle fault diagnosis system. With the harness, the ECU can receive data from various sensors and meters, perform fault detection and diagnosis, and display fault information through an indicator light or display screen on the instrument panel when needed.

III: Lighting control: The automotive wiring harness is used to control the lighting system of the vehicle, including headlights, taillights, brake lights, turn signals, etc. It is connected with ECU and light switch, and the control signal is transmitted to the corresponding light device to realize the light switch and brightness control.

5. Feature

I: Multifunctional integration: ECU instrument switches automotive wiring harnesses are designed to connect the ECU (Electronic Control Unit) of the vehicle and switches on the instrument panel to achieve control of vehicle functions. The harness can integrate multiple switches and indicators to simplify the design and operation of the instrument panel through proper wiring and connection.

II: High quality signal transmission: The automotive wiring harness uses high quality wires, connectors and insulation materials to ensure accurate and reliable signal transmission. This is essential for the transmission of operator commands from the driver to the ECU and feedback information from the ECU back to the instrument instruments and indicator lights on the dashboard.
