Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: High flexible towing cable
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: 3-4 week
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
TC-ER 3C*10AWG Long-distance Transmission Anti-interfernce BDM4000 Alternating Current Battery Wire Harness |
Application Area: |
Solar Power System, Industrial Automation Equipment, Etc |
Wire Type: |
TC-ER 3C*10AWG |
Connector: |
Custom Plugs, Circular Terminals, Y-shaped Terminals |
Flame Retardant Rating: |
UL94-V0 |
Length: |
300mm |
OD: |
4.0mm |
Color: |
Black |
Withstand Voltage: |
300V |
Temperature: |
-40℃~+85℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL336A073 |
Product Name: |
TC-ER 3C*10AWG Long-distance Transmission Anti-interfernce BDM4000 Alternating Current Battery Wire Harness |
Application Area: |
Solar Power System, Industrial Automation Equipment, Etc |
Wire Type: |
TC-ER 3C*10AWG |
Connector: |
Custom Plugs, Circular Terminals, Y-shaped Terminals |
Flame Retardant Rating: |
UL94-V0 |
Length: |
300mm |
OD: |
4.0mm |
Color: |
Black |
Withstand Voltage: |
300V |
Temperature: |
-40℃~+85℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL336A073 |
TC-ER 3C*10AWG long-distance transmission anti-interfernce BDM4000 alternating current battery wire harness
1. Product description
TC-ER 3C*10AWG long-distance transmission anti-interfernce BDM4000 alternating current battery wire harness with 3 core cables, each cable uses 10AWG wire. The relatively large diameter of the 10AWG wire enables it to withstand higher current loads and voltages, making it suitable for high power applications. In addition, the use of 3-core cables enables the simultaneous transmission of multiple signals or power sources in the harness.
TC-ER wire is designed with excellent interference resistance, which can resist external electromagnetic interference and ensure high-quality signal transmission and power transmission. And the terminal drawing force test is greater than 180N.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
TC-ER 3C*10AWG long-distance transmission anti-interfernce BDM4000 alternating current battery wire harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Solar power system, industrial automation equipment, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

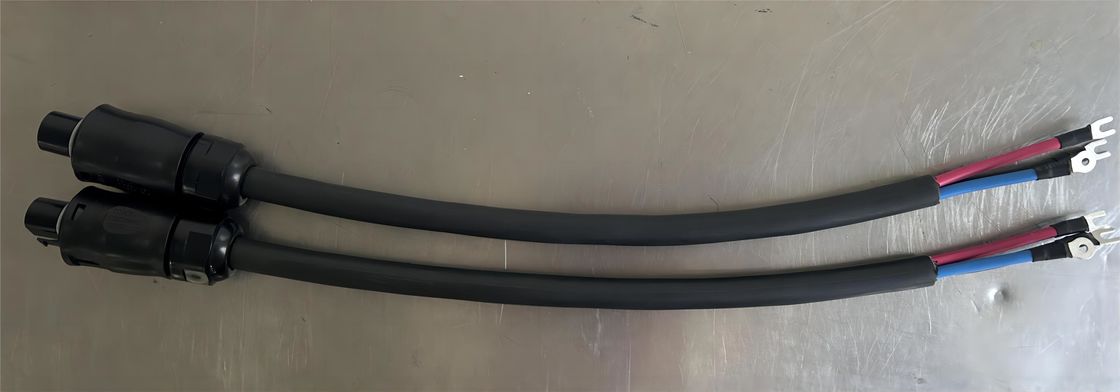

3. Picture of real products
4. Application area
I: Solar power system: The AC battery wiring harness can used to connect the battery modules and inverters in the solar power system to realize the transmission and distribution of solar power.
II: Industrial automation equipment: AC battery wiring harnesses can used to connect industrial equipment such as automated production wire harness, robots, and control systems to provide power supply and signal transmission.
III: Ev charging system: Used for power transmission between EV charging piles and vehicles, supporting high-power charging and long-distance transmission.
5. Features
I: Long distance transmission: The battery wire harness is designed to support long distance power or signal transmission with low voltage loss and signal attenuation.
II: Anti-interference: The battery wire harness adopts special anti-interference design to reduce the influence of external electromagnetic interference on electrical signals and provide better signal quality and stability.
III: TC-ER rating: TC-ER indicates that the battery wire harness meets the standards for use in cables in industrial environments with additional resistance to wear, oil, and corrosion.
