Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,,ROHS2.0
Model Number: PV wiring harness
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
300V IP67 UL2464 UV Resistant Insulated Cable Plug Black 500mm PV Cable Harness |
Application Area: |
Photovoltaic Equipment |
Wire Harness Type: |
UL2464 Outer Coat: Black (UV Resistant) |
Wire Core Material: |
Copper |
Processing Technic: |
Riveting, Welding, Assembly |
Connector: |
Cable Plug (WEIPU), Type 250 Insulated Terminal Blue |
Color: |
Black |
Length: |
500mm |
Rated Voltage: |
DC300V, 10 Milliseconds |
Conductor Resistance: |
≤3Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM / ODM: |
Accept |
Product Name: |
300V IP67 UL2464 UV Resistant Insulated Cable Plug Black 500mm PV Cable Harness |
Application Area: |
Photovoltaic Equipment |
Wire Harness Type: |
UL2464 Outer Coat: Black (UV Resistant) |
Wire Core Material: |
Copper |
Processing Technic: |
Riveting, Welding, Assembly |
Connector: |
Cable Plug (WEIPU), Type 250 Insulated Terminal Blue |
Color: |
Black |
Length: |
500mm |
Rated Voltage: |
DC300V, 10 Milliseconds |
Conductor Resistance: |
≤3Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM / ODM: |
Accept |
300V IP67 UL2464 UV resistant insulated cable plug black 500mm PV cable harness
1. Product description
300V IP67 UL2464 UV resistant insulated cable plug black 500mm PV cable harness the rated voltage is 300 volts. This means that it is suitable for low-voltage applications, such as DC circuits in photovoltaic systems. This PV harness is equipped with cable plugs for easy connection to other devices or power sources. Cable plugs have specific connector types and plugging and unplugging mechanisms to ensure reliable electrical connections. IP67 is an international standard level of protection. This level indicates that the harness has high dust and water resistance. Ip67-rated PV wiring harnesses can prevent dust and water intrusion to a certain extent. The insulation material of the photovoltaic harness has the characteristics of ultraviolet resistance, which can prevent the damage of ultraviolet radiation to the cable insulation. This is important for outdoor PV systems as they need to operate in the sun for long periods of time and are exposed to UV radiation.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
300V IP67 UL2464 UV resistant insulated cable plug black 500mm PV cable harness |
|
Product certification |
Pass ISO13485,ISO9001,ROHS2.0and UL certification |
|
Product application |
Photovoltaic equipment |
|
Product superiority |
Corrosion resistance, waterproof,high and low temperature resistance, UV aging resistance, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

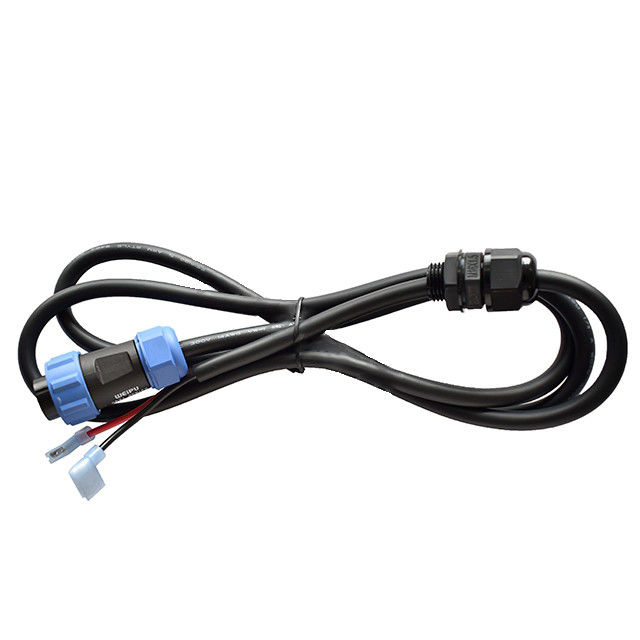

3. Picture of real products
4. Application area
I: Photovoltaic power generation system: The photovoltaic wiring harness is suitable for electrical connections in solar photovoltaic systems. It can be used to connect circuits between PV panels, inverters, batteries, charge controllers and other components for the transmission of DC energy and signals.
II: Solar panel manufacturing: The PV wiring harness can be used in the manufacturing process of solar panels to connect circuits to cell sheets, backplanes, cell cases, and other internal components.
III: Solar lighting system: In outdoor solar lighting systems, this PV harness can used to connect circuits between components such as solar lamps, solar controllers and batteries to achieve lighting functions.
5. Features
I: IP67 protection grade: The PV wiring harness complies with IP67 standard and has excellent dust and water resistance performance. It provides complete protection against dust and maintains water resistance under short immersion conditions.
II: UV-resistant insulation: The PV harness is made of special insulation materials that are UV-resistant and can be exposed to the sun for a long time in outdoor environments without damage.
III: High reliability: This PV harness undergoes rigorous testing and quality control to ensure its reliability and durability. The PV harness is able to provide stable electrical connections in harsh working environments and has a long service life.
