Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,,ROHS2.0
Model Number: PV wiring harness
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
300mm 1500V 4mm² DC Power Cable Harness, Low Loss, High Frequency Transmission,Simple Assembly |
Application Area: |
Renewable Energy Integration, Long-distance Power Transmission, Etc |
Standard: |
QCT29106-2014 |
Wire Harness Type: |
PV1-F 1*4mm² |
Wire Core Material: |
Copper |
Connector: |
Supporting Plastic Shell |
OD: |
5.2mm |
Wire And Terminal Tension: |
270N |
Color: |
Red |
Length: |
300mm |
Temperature: |
＞105℃ |
Rated Voltage: |
1500V |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM / ODM: |
Accept |
Code: |
FDL216A1706 |
Product Name: |
300mm 1500V 4mm² DC Power Cable Harness, Low Loss, High Frequency Transmission,Simple Assembly |
Application Area: |
Renewable Energy Integration, Long-distance Power Transmission, Etc |
Standard: |
QCT29106-2014 |
Wire Harness Type: |
PV1-F 1*4mm² |
Wire Core Material: |
Copper |
Connector: |
Supporting Plastic Shell |
OD: |
5.2mm |
Wire And Terminal Tension: |
270N |
Color: |
Red |
Length: |
300mm |
Temperature: |
＞105℃ |
Rated Voltage: |
1500V |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM / ODM: |
Accept |
Code: |
FDL216A1706 |
300mm 1500V 4mm² DC Power Cable Harness, Low Loss, High Frequency Transmission,Simple Assembly
1. Product description
300mm 1500V 4mm² dc power cable harness, low loss, high frequency transmission,simple assembly manufactured with low-loss materials to minimize electrical energy loss. This helps to improve energy transmission efficiency and reduce heat loss.The wire has a cross-sectional area of 4mm² and is designed for a high voltage grade of 1500V to provide sufficient current carrying capacity to provide sufficient current carrying capacity for high voltage DC power transmission to ensure voltage stability and safety.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
300mm 1500V 4mm² DC Power Cable Harness, Low Loss, High Frequency Transmission,Simple Assembly |
|
Product certification |
Pass ISO13485,ISO9001,ROHS2.0and UL certification |
|
Product application |
Renewable energy integration, long-distance power transmission, etc |
|
Product superiority |
Corrosion resistance, waterproof,high and low temperature resistance, UV aging resistance, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

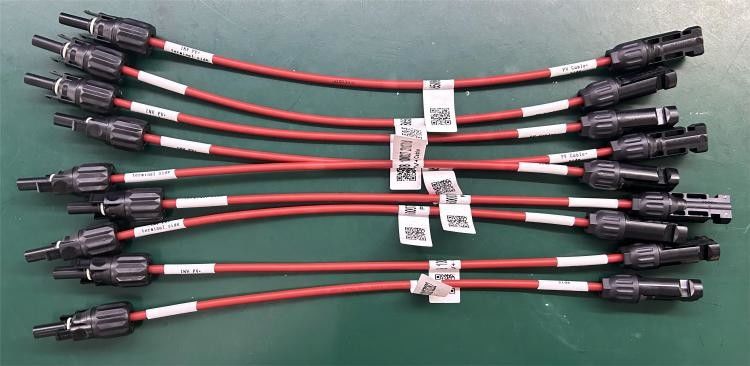

3. Picture of real products
4. Application area
I: Solar PV system: The DC power harness can used to connect the power transmission between the solar PV panel and the power inverter. Its high voltage level and low loss characteristics make it suitable for efficient solar energy conversion and transmission, ensuring stable operation of solar energy systems.
II: Wind power generation system: DC power harness can used to connect power transmission between wind turbines and power inverters to convert wind energy into electricity. The high voltage level and low loss characteristics help to improve energy conversion efficiency and reduce energy losses.
III: Industrial automation and robotics: The high frequency transmission characteristics of this pv harness make it suitable for high frequency signal transmission in industrial automation and robotics. It can be used to connect motors, sensors, controllers, and other devices for high frequency signal transmission and precise control.
5. Features
I: High voltage class: The PV harness is designed for a high voltage class of 1500V and is suitable for high voltage DC power transmission. It can safely and efficiently transmit high voltage electrical energy to meet the voltage requirements of specific applications.
II: Low loss: The PV harness is made of low loss materials to minimize energy loss during power transmission. This helps to improve energy transmission efficiency, reduce heat loss, as well as reduce energy costs.
III: High frequency transmission: This PV harness has high frequency transmission capability and is suitable for applications where high frequency signals need to be transmitted or special requirements in terms of high frequency response are required. High frequency transmission characteristics ensure accurate signal transmission and high quality data transmission.
IV: Simple assembly: The assembly process of this PV harness is simple without complex tools or techniques. This makes installation and maintenance more convenient and reduces assembly time and cost. The simple assembly process also helps improve production efficiency.
