Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: UL1007 16# or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Custom Medical Wire Harness Insulation Transparent Sheath Grounding Post Connection |
Application Area: |
Various Types Of Medical Testing Equipment, Etc |
Wire Type: |
UL1007 16# Or Customized |
Terminal: |
Ring Pre-insulated Terminal RV1.25-6/3 |
Protecting Bush: |
250 Straight End Transparent Soft Sheathing |
Color: |
Yellow / Green |
Conductor Material: |
Oxygen-Free Copper |
Length: |
130mm |
Conduction Impedance And Insulation Resistance: |
3Ω , 5MΩ |
OD: |
2.4mm |
DV High Pressure: |
300V/0.01S |
Operating Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL129A153 |
Product Name: |
Custom Medical Wire Harness Insulation Transparent Sheath Grounding Post Connection |
Application Area: |
Various Types Of Medical Testing Equipment, Etc |
Wire Type: |
UL1007 16# Or Customized |
Terminal: |
Ring Pre-insulated Terminal RV1.25-6/3 |
Protecting Bush: |
250 Straight End Transparent Soft Sheathing |
Color: |
Yellow / Green |
Conductor Material: |
Oxygen-Free Copper |
Length: |
130mm |
Conduction Impedance And Insulation Resistance: |
3Ω , 5MΩ |
OD: |
2.4mm |
DV High Pressure: |
300V/0.01S |
Operating Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL129A153 |
Custom medical wire harness insulation transparent sheath grounding post connection
1. Product description
Custom medical wire harness insulation transparent sheath grounding post connection it adopts the insulating and transparent sheath material,which has good insulation performance and the transparent characteristics can facilitate the observation of the connections and lines inside the harness.The harness is equipped with a grounding pile for connecting to the grounding end of the medical device. The role of the grounding pile is to provide the grounding function of the wire harness, ensure electrical safety and reduce electromagnetic interference.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Custom medical wire harness insulation transparent sheath grounding post connection |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS certification |
|
Product application |
Various types of medical testing equipment, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Continuity test. |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

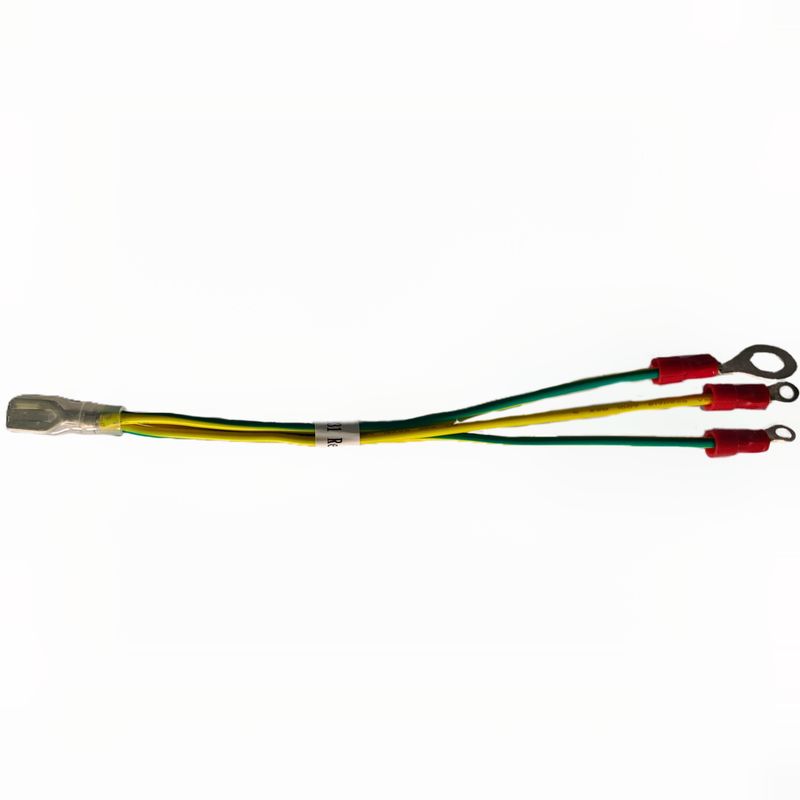

3. Picture of real products
4. Application area
I: Endoscope system: The medical wire harness plays a key role in the endoscope system to connect the endoscope and external devices. They transmit the necessary connections such as images, signals, and power to ensure proper operation of the endoscopy system.
II: Surgical instruments: Medical wire hardings can be integrated with surgical instruments to transmit signals and power to support the operation and control of surgical instruments. For example, wiring harnesses are connected to minimally invasive surgical instruments for power supply and signal transmission.
III: Life support systems: Medical wiring harness plays an important role in life support systems such as cardiac pacemakers, artificial ventilators, etc. Wiring harnesses transmit critical physiological signals and power, ensuring device support and treatment for patients.
5. Feature
I: High insulation performance: The wire harness adopts high quality insulating transparent sheath material, which has excellent insulation performance to ensure stable transmission of electrical signals and provide electrical safety.
II: Grounding pile design: The harness is equipped with a grounding pile for connecting to the grounding end of the medical device, providing a reliable grounding connection, ensuring electrical safety and reducing electromagnetic interference.
III: Anti-interference design: The wire harness adopts anti-interference design, including shielding material, insulation layer and grounding design, to reduce the influence of external electromagnetic interference on the signal and ensure the reliability and stability of signal transmission.
