Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: High flexible drag chain line or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
20AWG 26AWG Medical Wire Harness With Tinned Copper Composite Double Shield |
Application Area: |
Various Types Of Medical Testing Equipment, Etc |
Wire Type: |
High Flexible Drag Chain Line Or Customized |
Conductor Material: |
Oxygen-free Copper Or Optional |
Insulating Material: |
PVC |
Color: |
White Or Optional |
OD: |
Customize To Demand |
Length: |
600mm Or Customized |
Conduction Impedance And Insulation Resistance: |
3Ω，5MΩ |
DV High Pressure: |
300V/0.01S |
Operating Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Product Name: |
20AWG 26AWG Medical Wire Harness With Tinned Copper Composite Double Shield |
Application Area: |
Various Types Of Medical Testing Equipment, Etc |
Wire Type: |
High Flexible Drag Chain Line Or Customized |
Conductor Material: |
Oxygen-free Copper Or Optional |
Insulating Material: |
PVC |
Color: |
White Or Optional |
OD: |
Customize To Demand |
Length: |
600mm Or Customized |
Conduction Impedance And Insulation Resistance: |
3Ω，5MΩ |
DV High Pressure: |
300V/0.01S |
Operating Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
20AWG 26AWG medical wire harness with tinned copper composite double shield
1. Product description
20AWG 26AWG medical wire harness with tinned copper composite double shield composite double shielding design is adopted to provide better anti-interference capability. Composite shielding is usually composed of metal shielding layer and insulation layer, which can effectively reduce the influence of external electromagnetic interference on the signal and improve the transmission quality and reliability of the signal.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
20AWG 26AWG medical wire harness with tinned copper composite double shield |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS certification |
|
Product application |
Various types of medical testing equipment, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Continuity test. |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

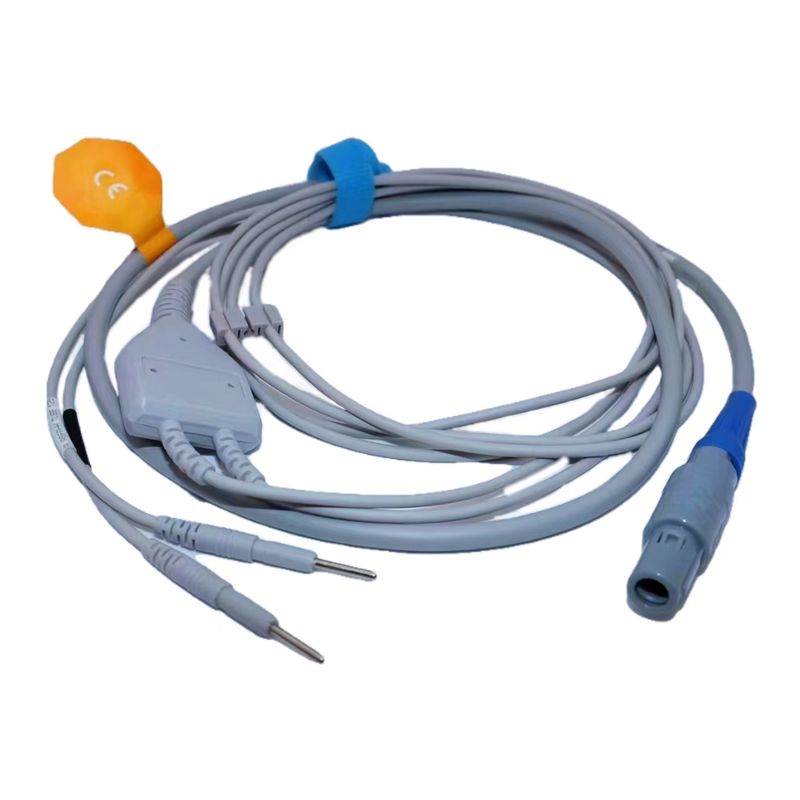

3. Picture of real products
4. Application area
I: Medical imaging equipment: This medical wire harness can used to connect circuits and sensors in medical imaging equipment such as X-ray equipment, CT (computed tomography) machines, MRI (magnetic resonance imaging) devices, etc. They are used to transmit power, signals, and data, ensuring proper operation of equipment and image quality.
II: Vital signs monitoring equipment: The medical wire harness is suitable for blood pressure monitor, electrocardiogram machine, pulse oxygen saturation meter and other vital signs monitoring equipment. They connect sensors, electrodes, and instruments that deliver biological signals and measurements to monitor a patient's physiological state.
III: Diagnostic equipment: The medical wire harness is suitable for various diagnostic equipment, such as blood glucose meter, thermometer, oximeter, etc. They transmit measurement signals and data that help doctors make diagnoses and monitor the health of patients.
5. Feature
I: High anti-interference capability: The composite double shielding design can effectively reduce the influence of external electromagnetic interference on the signal and provide high anti-interference capability. The medical wire harness use double shielding structure contains metal shielding layer and insulation layer, which can block the interference of external electromagnetic field and ensure the stability and reliability of signal transmission.
II: Durability and wear resistance: The medical wire harness is made of high quality insulation material and sheath material, which has good durability and wear resistance. It can withstand long use, frequent bending and tension, extending the service life of the harness.
