Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: UL1007 16# or customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
UL1007 5 PIN Custom Power Supply Cables 120mm For Foot Lift Motor |
Application Area: |
Various Types Of Medical Testing Equipment, Etc |
Wire Type: |
UL1007 16# |
Conductor Material: |
Oxygen-free Copper |
Electrical Machinery: |
EC-I40,φ40mm, Brushless, 50W (MAXON) |
Terminal: |
CI14T011PE0 Fit (Tinned 28#~32#) |
Color: |
Black |
OD: |
2.4mm |
Length: |
120mm |
Conduction Impedance And Insulation Resistance: |
3Ω，5MΩ |
DV High Pressure: |
300V 0.01S |
Operating Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
Packing: |
PE Bags; Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A1020 |
Product Name: |
UL1007 5 PIN Custom Power Supply Cables 120mm For Foot Lift Motor |
Application Area: |
Various Types Of Medical Testing Equipment, Etc |
Wire Type: |
UL1007 16# |
Conductor Material: |
Oxygen-free Copper |
Electrical Machinery: |
EC-I40,φ40mm, Brushless, 50W (MAXON) |
Terminal: |
CI14T011PE0 Fit (Tinned 28#~32#) |
Color: |
Black |
OD: |
2.4mm |
Length: |
120mm |
Conduction Impedance And Insulation Resistance: |
3Ω，5MΩ |
DV High Pressure: |
300V 0.01S |
Operating Temperature: |
-20℃~+80℃ |
MOQ: |
50 Pcs |
Packing: |
PE Bags; Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A1020 |
UL1007 5 PIN Custom Power Supply Cables 120mm for foot lift motor
1. Product description
UL1007 5 pin custom power supply cables 120mm for foot lift motor with 5 pins, it is suitable for power supply and control signal transmission of foot lift motor. These pins can used for DC power transmission, control signal transmission, and other necessary connection requirements to ensure proper operation and control of the motor.Protective measures such as insulation layer and protective sleeve are used to prevent power leakage and accidental contact, and ensure the safety of users and equipment.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
UL1007 5 pin custom power supply cables 120mm for foot lift motor |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS certification |
|
Product application |
Various types of medical testing equipment, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Conduction rate 100% |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

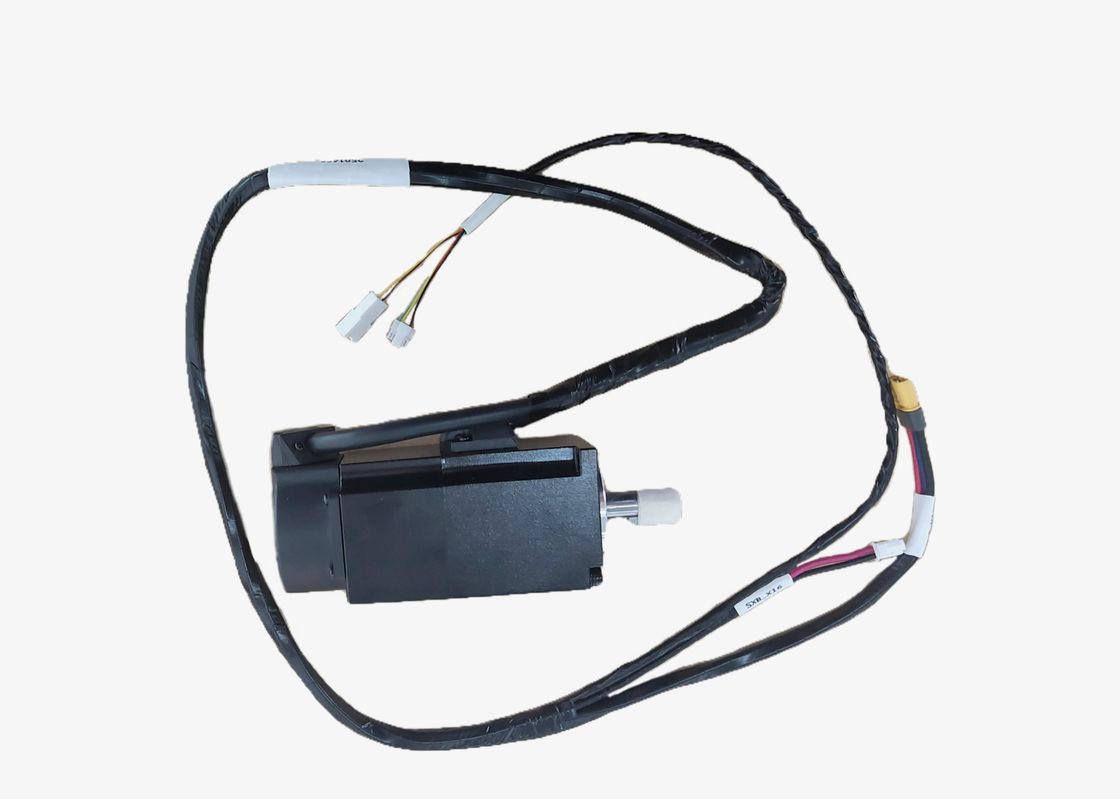

3. Picture of real products
4. Application area
Foot lift motor: This power harness is suitable for foot lift motor applications. Pedal lifting motors are widely used in office furniture, medical equipment, industrial workbenches and other fields to provide lifting functions so that users can adjust the height of workbenches, tabletops, or seats as required.
5. Feature
I: 5-PIN design: The power harness has a 5-pin design, which is suitable for power supply and control signal transmission of foot lift motor. These pins can be used for DC power transmission, control signal transmission, and other necessary connection requirements.
II: Reliability and Durability: The UL1007 5-pin custom power harness is manufactured from high quality materials for excellent interference resistance and durability. It is able to withstand higher voltages and currents and maintain stable performance over long periods of use.
III: Safety: The UL1007 5-pin custom power harness undergoes rigorous testing and quality control to ensure its safety. It adopts protective measures such as insulation layer and protective sleeve to prevent power leakage and accidental contact, ensuring the safety of users and equipment.
