Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: UL、CUL、CE、ROHS、REACH
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: 1~2$
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
UL3133 16mm² Bared Copper Stranded Silicone 600V 150℃ EV Battery Motorcycles Charging Cable |
Application Area: |
Industrial, Comsumer Electrics, Medical, Etc |
Conductor: |
Tinned Copper Stranded |
Cable Shape: |
Round |
Jacket: |
Silicone |
Insulation: |
Silicone |
Rated Voltage: |
600V |
Temperature: |
150℃ |
Packing: |
Packed In Reels |
MOQ: |
50M |
OEM,ODM: |
Accept |
Code: |
HT2306007 |
Product Name: |
UL3133 16mm² Bared Copper Stranded Silicone 600V 150℃ EV Battery Motorcycles Charging Cable |
Application Area: |
Industrial, Comsumer Electrics, Medical, Etc |
Conductor: |
Tinned Copper Stranded |
Cable Shape: |
Round |
Jacket: |
Silicone |
Insulation: |
Silicone |
Rated Voltage: |
600V |
Temperature: |
150℃ |
Packing: |
Packed In Reels |
MOQ: |
50M |
OEM,ODM: |
Accept |
Code: |
HT2306007 |
UL3133 16mm² bared copper stranded silicone 600V 150℃ EV battery motorcycles charging cable
1. Product description
UL3133 16mm² bared copper stranded silicone 600V 150℃ EV battery motorcycles charging cable the conductor is 16mm² bare copper stranded wire. Bare copper conductors have good electrical and thermal conductivity and are suitable for high current transmission. The twisted structure helps to reduce the influence of electromagnetic interference inside the cable and provides better signal transmission performance. The cable uses silica gel as insulation material. It can maintain the electrical and insulating properties of the cable in high temperature environment. The cable can work in high temperature environment, its rated temperature is 150℃, suitable for high temperature working environment. UL3133 certification ensures that the cables meet the relevant safety and electrical performance requirements. This helps to ensure the safety and reliability of the cable during use.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
| Product Name |
UL3133 16mm² bared copper stranded silicone 600V 150℃ EV battery motorcycles charging cable |
| Product certification | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
| Product application | Industrial, comsumer electrics, medical, etc |
| Temperature | 150 ℃ |
| Aged condition | 158±1℃×168h |
| Flame rated | FT2 |
| Voltage withstand test | AC 2.0kV/1min |
|
Max.DC conductor resistance(20℃) |
1.348Ω/km |
| Percent of original elongation | 1~2 weeks |
| After-sales service | Authentic guaranteed, factory outlets center |

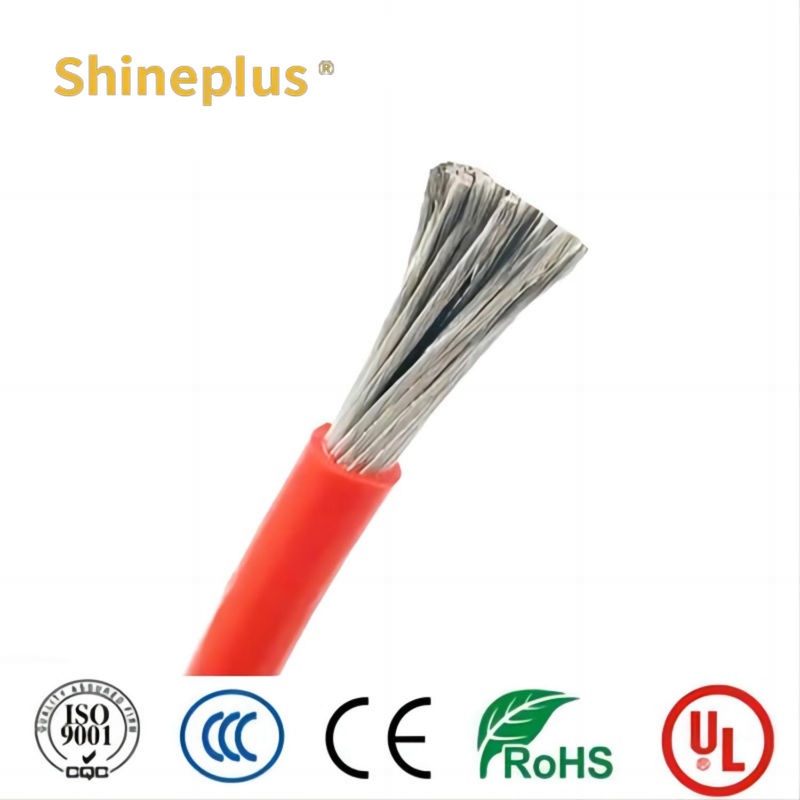

3. Picture of real products
4. Application area
I: Electric vehicle high voltage battery system: this is the most important application scenario of the cable harness. The wiring harness can be used for various connections inside the high-voltage battery pack of electric vehicles, such as serial and parallel connections between battery modules, communication connections between modules and battery management system (BMS), etc. Its high voltage grade, high temperature performance and excellent electrical characteristics, fully meet the strict requirements of electric vehicle high voltage battery system.
II: Motor drive system: In addition to battery system, the cable harness is also widely used in the high voltage power supply line of electric vehicle motor drive system. The harness can be used to connect the battery pack to the motor controller, and between the motor controller and the motor. Excellent mechanical properties and chemical corrosion resistance ensure safe and reliable operation even in harsh drive system environment.
5. Feature
I: High flexibility and tensile resistance: The cable harness is designed with ultra-fine bare copper wire core, which has excellent flexibility and tensile resistance. Even in the complex internal wiring environment of the battery pack, it can ensure good electrical and mechanical performance for a long time, greatly reducing the potential for failure.
II: High temperature tolerance:High temperature resistance: The cable harness uses specially developed ETFE insulation material, the maximum operating temperature can reach 150℃. This excellent high temperature resistance ensures long-term stable and reliable work of the harness in high temperature areas such as the battery compartment, greatly improving the safety of the whole battery system.
III: High reliability: The design and manufacture of the cable harness products strictly follow the quality standards of the automotive industry, through strict electrical, mechanical, environmental testing and certification. It ensures long-term reliable operation under various harsh working conditions.
