Product Details
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: PE bags; Cartons
Delivery Time: 1-2 week
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Name: |
Custom RV 1.5MM² 90° Bend High Temperature Resistance Emergency Stop Switch Button Cable Harness |
Application Area: |
Electrical Control System |
Product Certification: |
IPC620、REACH、ROHS2.0 |
Connector: |
2pin Plastic Case, Round Terminal, Switch Button |
Waterproof Grade: |
IP67 |
Color: |
Yellow And Black |
Length: |
200mm |
Rated Voltage: |
300V |
Conductor Resistance: |
≤2Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A023 |
Product Name: |
Custom RV 1.5MM² 90° Bend High Temperature Resistance Emergency Stop Switch Button Cable Harness |
Application Area: |
Electrical Control System |
Product Certification: |
IPC620、REACH、ROHS2.0 |
Connector: |
2pin Plastic Case, Round Terminal, Switch Button |
Waterproof Grade: |
IP67 |
Color: |
Yellow And Black |
Length: |
200mm |
Rated Voltage: |
300V |
Conductor Resistance: |
≤2Ω |
Insulation Resistance: |
≥5MΩ |
MOQ: |
50 Pcs |
Packing: |
Cartons |
OEM,ODM: |
Accept |
Code: |
FDL464A023 |
Custom RV 1.5MM² 90° bend high temperature resistance emergency stop switch button cable harness
1. Product description
Custom RV 1.5MM² 90° bend high temperature resistance emergency stop switch button cable harness the cables used are made of copper wires and insulation materials. Copper wire has good electrical conductivity and corrosion resistance, and can effectively transmit current.Insulation materials are made of high temperature resistant materials, such as high temperature resistant polyvinyl chloride (PVC), to protect the wires from external environmental damage. The cable wire harness maintains good bending performance at 90° bending, making it suitable for applications where bending or bending is required. Good performance in bending performance contributes to the flexibility and reliability of cable wire harnesses during installation and wiring. The cable harness has high temperature resistance characteristics, can work normally in high temperature environment. This makes it suitable for some industrial application scenarios that need to withstand high temperatures, ensuring the safety and reliability of the harness.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Custom RV 1.5MM² 90° bend high temperature resistance emergency stop switch button cable harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS certification |
|
Product application |
Electrical control system |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Electrical performance test, flame retardant test,connectivity testing and reliability testing |
|
MOQ |
Negotiable |
|
After-sales service |
Free warranty for 6 months |

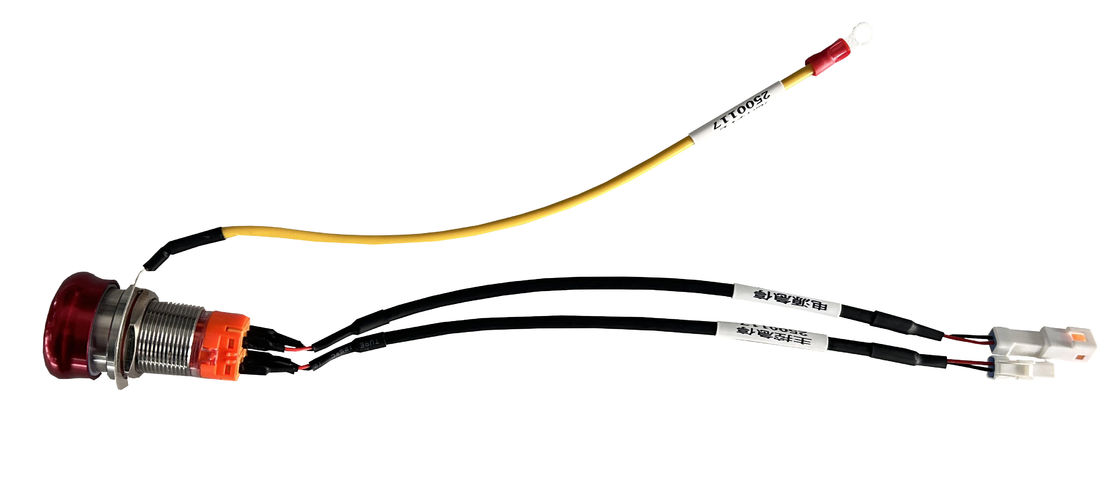

3. Picture of real products
4. Application area
I: Industrial automation: The cable harness is often used in industrial automation equipment, such as mechanical equipment, production lines, robots, etc. It can be used to connect the emergency stop switch button and the controller to realize the emergency stop function of the device.
II: Electrical control system: The cable harness can used to connect the emergency stop switch button in the electrical control system to ensure that the power supply can be cut off quickly in case of emergency to ensure the safety of personnel and equipment.
III: Heat treatment equipment: Because the cable harness has the characteristics of high temperature resistance, it is suitable for the control system and emergency stop switch button cable connection in heat treatment equipment, to ensure the reliable operation and safety of the equipment in high temperature environment.
5. Features
I: Flame retardant performance: The cable wire harness has good flame retardant performance, which can slow down the spread of fire and reduce fire risk and hazard in case of fire. This feature is important for application scenarios with high security requirements.
II: Bending performance: The cable wire harness can maintain good bending performance at 90° bending. This means that it can be flexibly bent during installation and wiring, adapting to different installation space and Angle requirements.
III: Emergency stop switch button connection: The cable wire harness may contain cables for connecting the emergency stop switch button. This connection cable is commonly used for the emergency stop function to quickly cut the power supply and stop the device operation in case of an emergency.
